Differential Rear Bushing: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the rear halfshaft. Refer to: Rear Halfshaft .
  3. Remove bolts and the RDU rear damper covers.

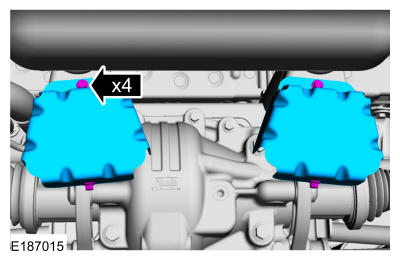

    GFD324402Courtesy of FORD MOTOR COMPANY
    1. Position and secure a transmission jack under the RDU. Use the General Equipment: Transmission Jack
    2. Remove the bolts and the RDU rear mounting brackets.
    3. Remove the bolts and the RDU rear dampers.

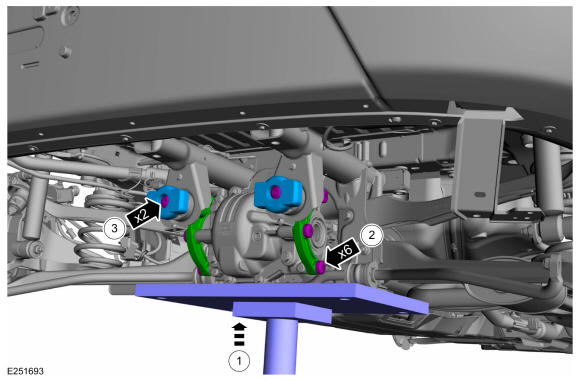

    GFD324403Courtesy of FORD MOTOR COMPANY
    1. Remove the RDU front mounting bracket to the RDU bolts.
    2. Remove the RDU front mounting bracket to member assembly bolts and the RDU mounting brackets. Use the General Equipment: Transmission Jack

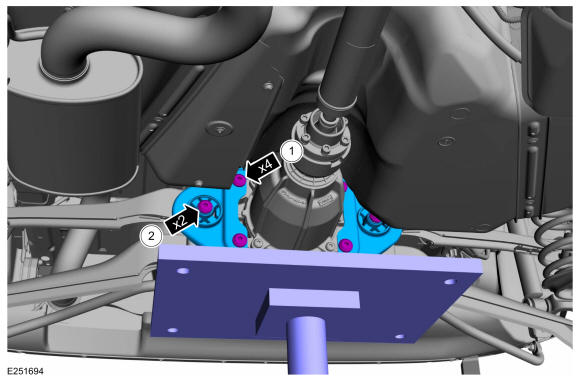

    GFD324404Courtesy of FORD MOTOR COMPANY
  6. Slowly lower the transmission jack and the RDU assembly. Use the General Equipment: Transmission Jack

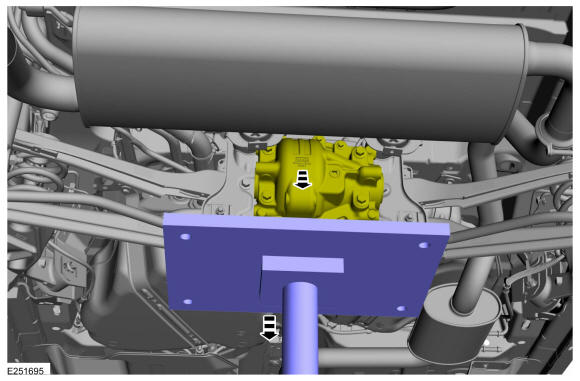

    GFD324405Courtesy of FORD MOTOR COMPANY
  7. Using the special tool, remove the differential rear bushing. Use Special Service Tool: 205-271 Installer, Pivot Bushing., 204-598-01 Remover/Installer, Subframe Bushing Guide.

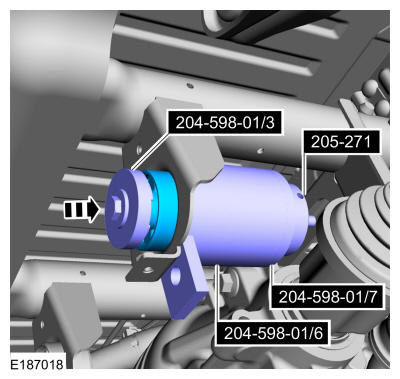

GFD324406Courtesy of FORD MOTOR COMPANY
