Differential Rear Bushing: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

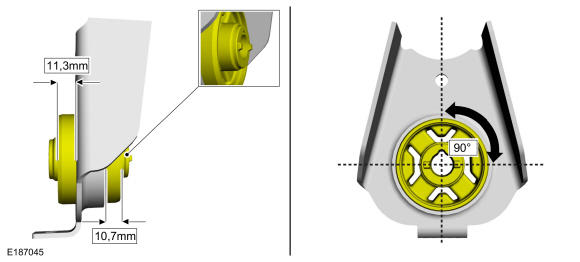

Mark on new differential rear bushing at specified distance.

Courtesy of FORD MOTOR COMPANY
NOTE: Verify correct orientation on differential brackets, bushings must face away from the RDU assembly.

Install the differential rear bushing and ensure the distance marked.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the installation marks are aligned.

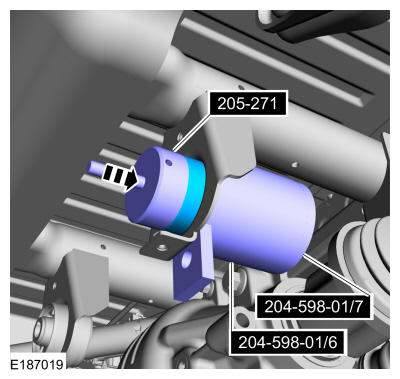

Using the special tool press the differential rear bushing. Use Special Service Tool: 205-271 Installer, Pivot Bushing., 204-598-01 Remover/Installer, Subframe Bushing Guide.

Courtesy of FORD MOTOR COMPANY

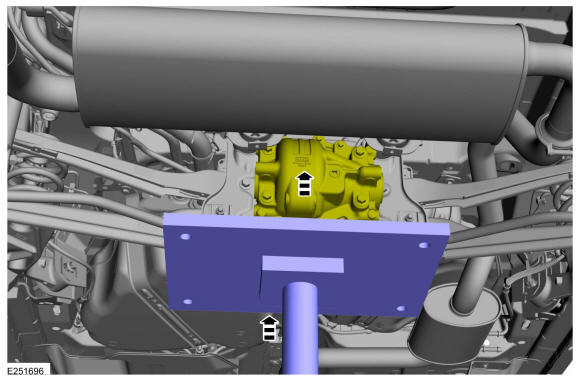

Slowly raise the transmission jack and the RDU. Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY
1. Install the RDU front mounting brackets and the bolts.
  Torque: 66 lb.ft (90 Nm)
2. Install the RDU front mounting bracket to member assembly bolts.
  Torque: 66 lb.ft (90 Nm)
Courtesy of FORD MOTOR COMPANY

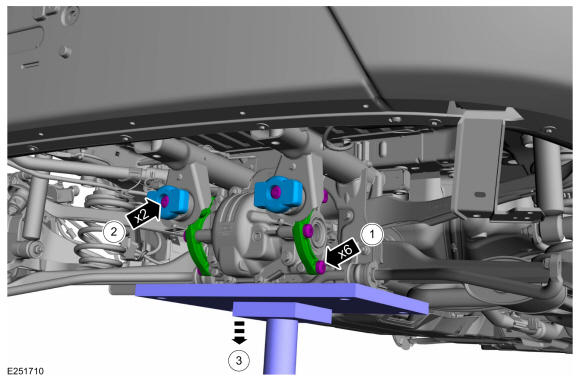

1. Install the RDU rear mounting brackets and the bolts.
  Torque: 66 lb.ft (90 Nm)
2. Install the RDU rear dampers and the mounting bolts.
  Torque: 66 lb.ft (90 Nm)
3. Remove the transmission jack.
Courtesy of FORD MOTOR COMPANY
Install the RDU rear damper covers and the bolts.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Install the rear halfshaft. Refer to: Rear Halfshaft .
