Axle Assembly: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear subframe - AWD. Refer to: Rear Subframe - AWD .
- Place the RDU on the working bench.

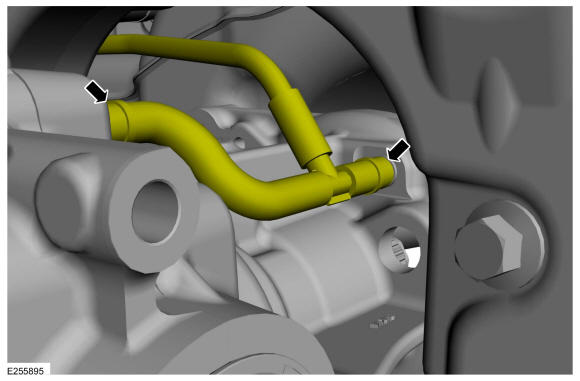

- Remove the RDU housing vent tube.
Courtesy of FORD MOTOR COMPANY

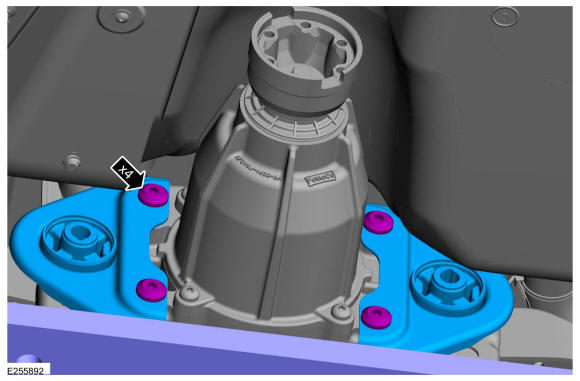

1. Remove the RDU front mounting bolts.
  Torque: 66 lb.ft (90 Nm)
2. Remove the bolts and the RDU front mounting brackets.
  Torque: 66 lb.ft (90 Nm)
Courtesy of FORD MOTOR COMPANY

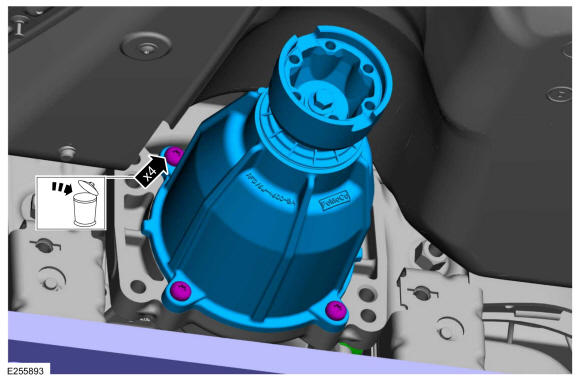

Remove and discard the RDU coupler housing bolts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: When assembling use a 2 mm bead of silicon sealant.

NOTE: The PTU coupler housing should be dry. The presence of fluid in the housing cavity is most likely from a failed / overheated Active Torque Coupling (ATC). Clean any fluid from the housing before assembly.

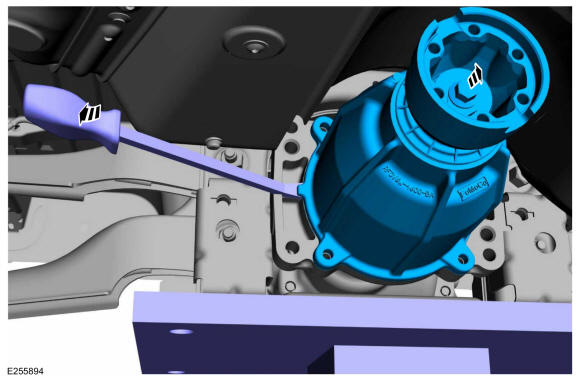

Using a pry bar, remove the RDU coupler housing. Use the General Equipment: Tire Lever

Material: Motorcraft® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY

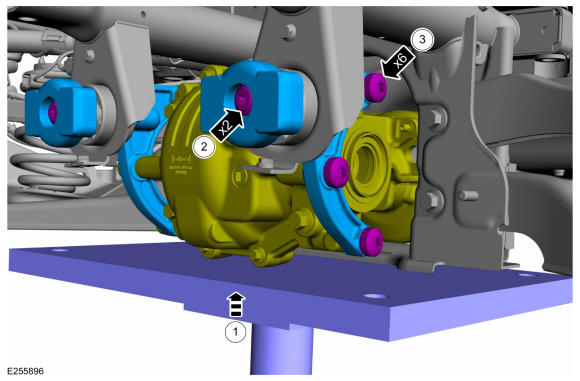

1. Remove the bolts and the RDU mounting brackets.
  Torque: 66 lb.ft (90 Nm)
2. Remove the bolts and the RDU rear dampers.
  Torque: 66 lb.ft (90 Nm)
Courtesy of FORD MOTOR COMPANY

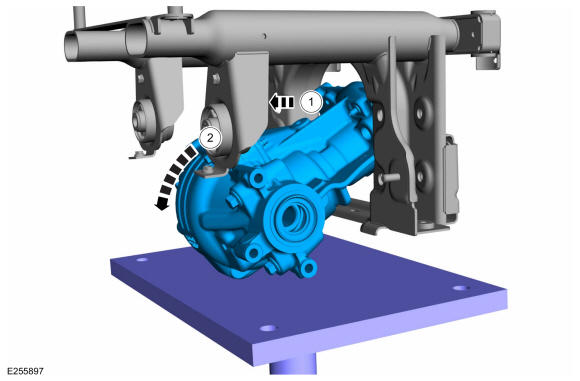

Remove the RDU.
1. Move the RDU backward.
2. Slowly tilt the RDU and down..

Courtesy of FORD MOTOR COMPANY
