Differential Draining and Filling: Filling
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

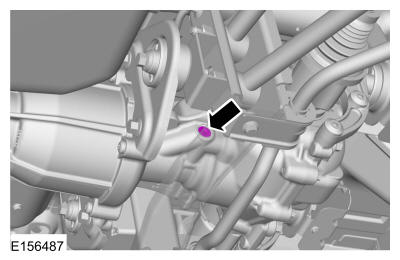

- Install the RDU fluid drain plug.
Torque: Stage 1: 177 lb.in (20 Nm) Stage 2: 180 deg.
- Fill the RDU with clean RDU gear lubricant. Refer to: Specifications .
- Install the RDU fluid fill plug.
Torque: 18 lb.ft (25 Nm)
