Active On-Demand Coupling Configuration

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations Refer to OEM Color Coding

Configuration

Using the diagnostic scan tool, under the toolbox icon select powertrain then select active on demand coupling barcode Entry. Follow the instructions displayed on the diagnostic scan tool.
NOTE: If the active on demand coupling bar code information is not correct, rear drive unit (RDU) damage or driveability concerns can occur.

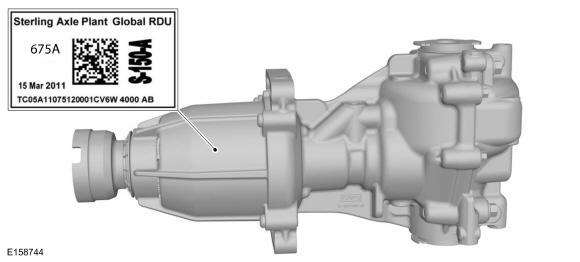

Enter the 4-digit alpha numeric bar code found on the label. The diagnostic scan tool verifies the digits entered are valid and displays a message if the information is not valid.

Courtesy of FORD MOTOR COMPANY
Follow the instructions displayed on the scan tool.
Road test the vehicle. Carry out the AWD drive cycle after downloading the active on demand coupling solenoid bar code information to the PCM. Refer to: Four-Wheel Drive Systems .
