Wheel Bearing and Wheel Hub - Vehicles With: Rear Drum Brakes: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse the removal procedure.
NOTE: Make sure that the sensor ring is correctly located.

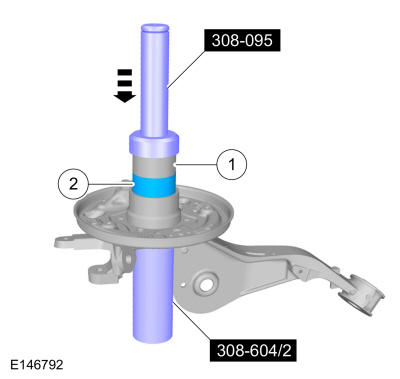

1. Old rear wheel bearing.
2. New rear wheel bearing.
3. Install the wheel bearing with the pink colored wheel speed sensor ring facing towards the transmission side. Use Special Service Tool: 308-095 Installer, Input Shaft Bearing., 308-604 Installer, Output Drive Flange Seal. Use the General Equipment: Hydraulic Press
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that a new snap ring is installed.

Install the new wheel hub bearing retaining circlip.

Courtesy of FORD MOTOR COMPANY
Install the wheel bearing and wheel hub. Use Special Service Tool: 204-161 (T97P-1175-A) Installer, Halfshaft.

Courtesy of FORD MOTOR COMPANY
Check and if necessary adjust the parking brake cable. Refer to: Parking Brake Cable Adjustment - Vehicles With: Rear Drum Brakes .
NOTE: Do not tighten the front wheel hub nut with the vehicle on the ground. The nut must be tightened to specification before the vehicle is lowered onto the wheels. Wheel bearing damage will occur if the wheel bearing is loaded with the weight of the vehicle applied.

NOTE: Install and tighten the new wheel hub nut to specification in a continuous rotation. Always install a new wheel hub nut after loosening or when not tightened to specification in a continuous rotation or damage to the components may occur.

NOTE: Apply the brake to keep the halfshaft from rotating.

Tighten the wheel hub nut.

Torque: 188 lb.ft (255 Nm)

Courtesy of FORD MOTOR COMPANY
Check and if necessary adjust rear toe. Refer to: Rear Toe Adjustment - AWD .
