Wheel Bearing and Wheel Hub - Vehicles With: Rear Disc Brakes: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

NOTE: Removal steps in this procedure may contain installation details.

Remove the wheel knuckle. Refer to: Wheel Knuckle - Vehicles With: Rear Disc Brakes .
NOTE: After the wheel hub is removed from the wheel knuckle, the wheel bearing must be discarded.

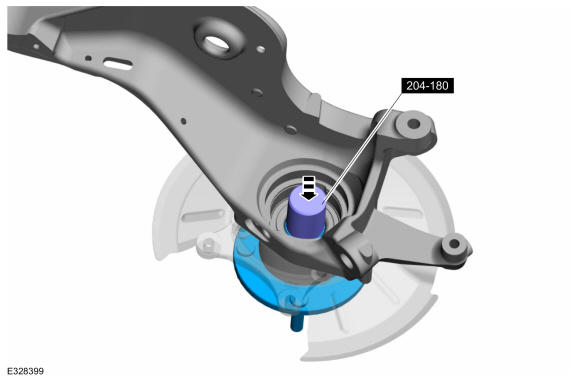

Remove the wheel hub and outer bearing race from the wheel knuckle using the hydraulic press and special tools. Use Special Service Tool: 204-180 (T93P-5493-A) Remover/Installer, Bushing. Use the General Equipment: Hydraulic Press

Courtesy of FORD MOTOR COMPANY
NOTE: The Bearing Puller and Bushing Remover/Installer must be used to prevent damage to the hub. If the hub is damaged, a new hub must be installed.

NOTE: Do not use heat to remove the bearing inner ring or damage to the bearing may occur.

NOTE: This step may not be necessary if the wheel bearing inner race remains on the wheel bearing after removing the wheel hub.

Using the special tools remove the wheel bearing inner race from the wheel hub (if remaining). Use Special Service Tool: 204-180 (T93P-5493-A) Remover/Installer, Bushing., 205-D064 (D84L-1123-A) Puller, Bearing. Use the General Equipment: Hydraulic Press

Courtesy of FORD MOTOR COMPANY
Inspect the wheel bearing and wheel hub flange for corrosion or damage. Replace as necessary.

Courtesy of FORD MOTOR COMPANY

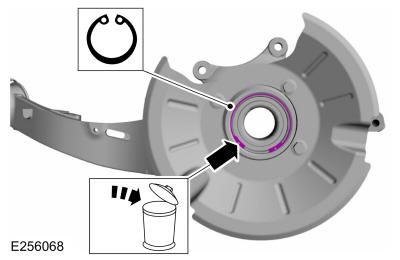

Remove and discard the retaining circlip.

Courtesy of FORD MOTOR COMPANY

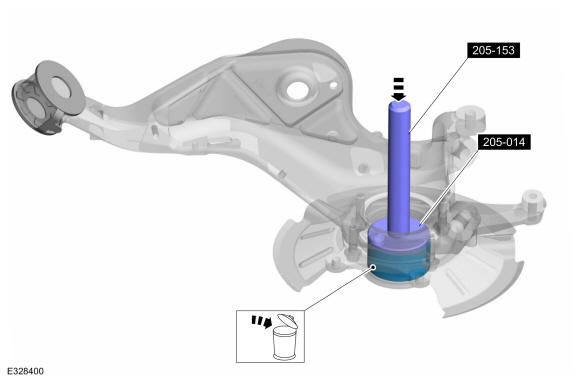

Remove the wheel bearing using the hydraulic press and special tools. Discard the wheel bearing. Use Special Service Tool: 205-153 (T80T-4000-W) Handle. Use Suggested Tool: 205-140 (T80T-4000-F) Installer, Drive Pinion Bearing Cup. Tool shown or a commercially available equivalent can be used. Use Special Service Tool: 205-014 (T60K-4616-A) Installer, Drive Pinion Bearing Cup. Use the General Equipment: Hydraulic Press

Courtesy of FORD MOTOR COMPANY
