Rear Stabilizer Bar: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
-
NOTE: Make sure that the ball joint ball does not rotate.

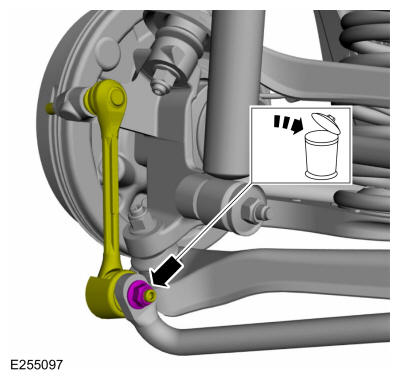

On both sides. Remove and discard the stabilizer bar link nut and position aside the stabilizer bar link.
- If equipped. Remove the retainers and remove the rear drive axle undershield.
-
NOTE: Use the hex-holding feature to prevent the stud from turning while removing or installing the nut.

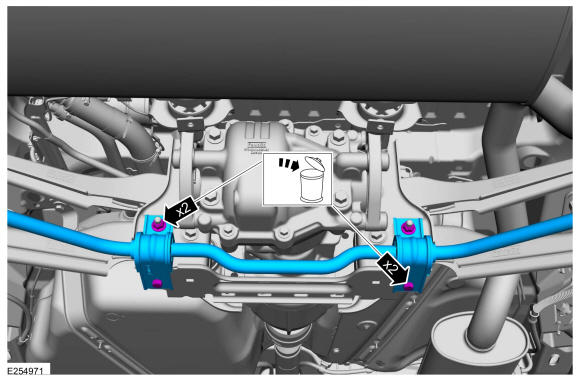

Remove and discard the stabilizer bar bracket retainers and remove the stabilizer bar.
-
NOTE: Note the position of each component before removal.
Remove the rear stabilizer bar brackets by pressing out of rear stabilizer bar bushings.
-
NOTE: Note the position of each component before removal.
Remove the rear stabilizer bar bushings.
