Rear Shock Absorber: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

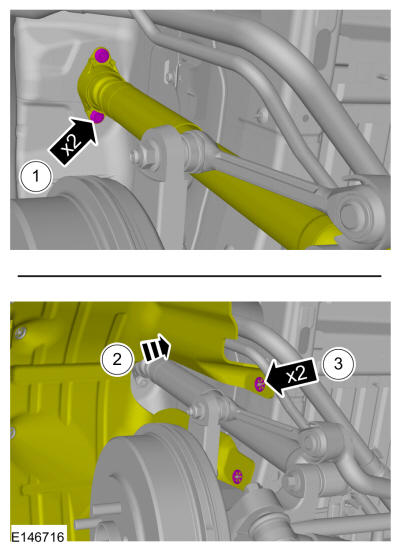

1. Install the rear shock absorber and install the rear shock absorber upper bolts.
  Torque: 22 lb.ft (30 Nm)
2. Position the fender splash shield.
3. Fix the retainer.
Courtesy of FORD MOTOR COMPANY

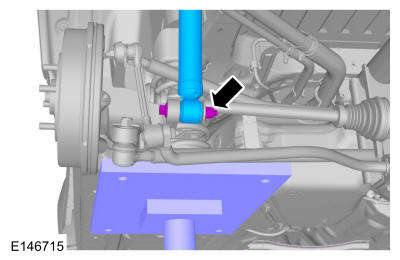

NOTE: Only tighten the nuts finger tight at this stage.

Install the new rear shock absorber lower bolt and nut. Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY

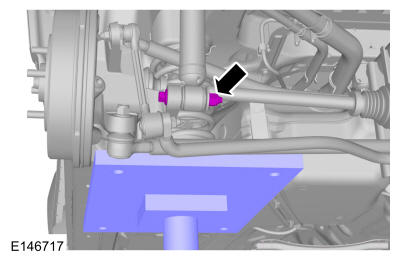

NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

Tighten the rear shock absorber lower bolt and nut. Use the General Equipment: Transmission Jack

Torque: 76 lb.ft (103 Nm)

Courtesy of FORD MOTOR COMPANY
Install the wheel and tire. Refer to: Wheel and Tire .
