Rear Suspension - Component Location
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|

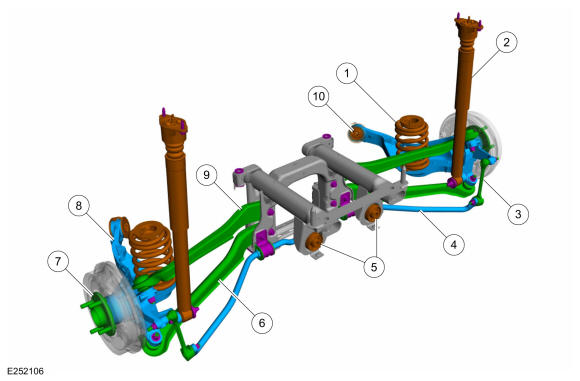

| Item |
Description |
| 1 |
Spring |
| 2 |
Shock absorber |
| 3 |
Stabilizer bar link |
| 4 |
Stabilizer bar |
| 5 |
Differential carrier rear bush |
| 6 |
Rear lower arm |
| 7 |
Wheel hub |
| 8 |
Rear wheel knuckle |
| 9 |
Upper arm |
| 10 |
Trailing arm bush |
