Rear Brake Pads: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the wheel and tire. Refer to: Wheel and Tire .

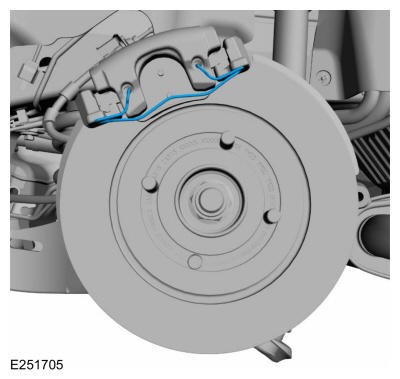

  2. Remove the brake caliper spring.
    GFD324572Courtesy of FORD MOTOR COMPANY

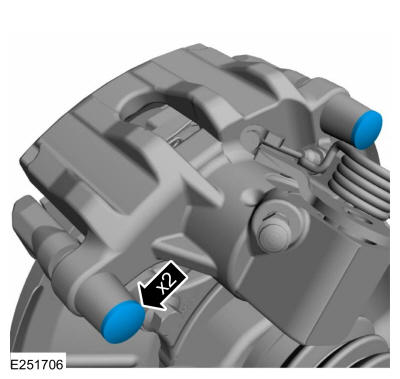

  3. Remove the caps.
    GFD324573Courtesy of FORD MOTOR COMPANY
  4. NOTE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.
    NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

    1. Remove the brake caliper guide pin bolts.

      Torque: 21 lb.ft (28 Nm)

    2. Position aside the brake caliper.

    GFD324574Courtesy of FORD MOTOR COMPANY

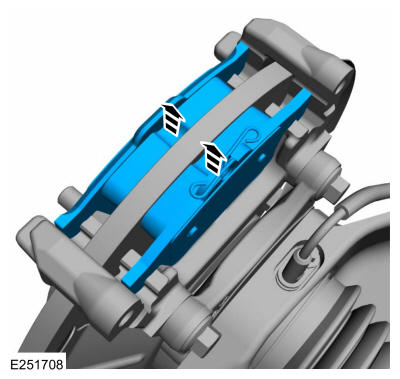

  5. Remove the brake pads.
    GFD324575Courtesy of FORD MOTOR COMPANY

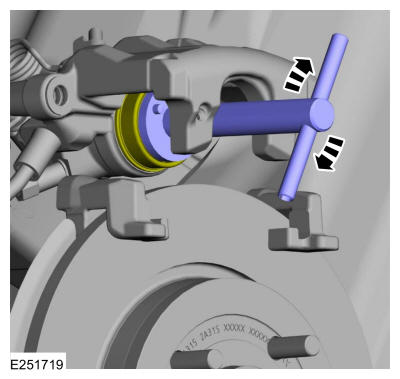

  6. Retract the brake caliper piston into the brake caliper bore. Use the General Equipment: Brake Caliper Piston Retractor
GFD324576Courtesy of FORD MOTOR COMPANY
