Rear Brake Pads: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The inboard brake pad is equipped with a wear indicator on the trailing edge of the brake pad. The brake pad backing is marked with an arrow that indicates the rotating direction of the brake disc.

To install, reverse the removal procedure.

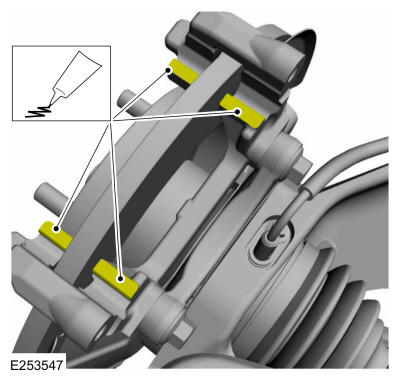

Apply the specified grease.
Material: Multi-Purpose Grease (WSS-M12A4-A2)

Courtesy of FORD MOTOR COMPANY
Depress the brake pedal several times, check the brake fluid level in the brake fluid reservoir and add the specified brake fluid as necessary.
Material: Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid / PM-20 (WSS-M6C65-A2)
