Rear Brake Flexible Hose: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

All vehicles

NOTE: Removal steps in this procedure may contain installation details.

Remove the wheel and tire. Refer to: Wheel and Tire .
Vehicles With: FWD
1. Disconnect the brake tube fitting.
  Torque: 159 lb.in (18 Nm)
2. Remove the clip and detach the brake hose from the bracket.
Courtesy of FORD MOTOR COMPANY

Vehicles With: AWD

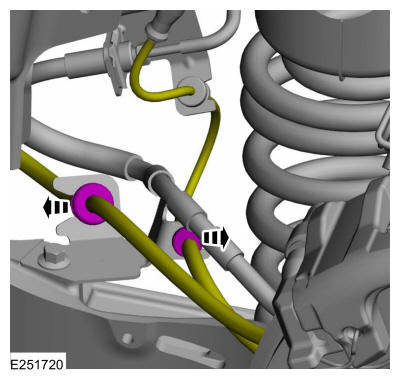

Detach the parking brake cable and the wheel speed sensor wiring from the bracket.

Courtesy of FORD MOTOR COMPANY

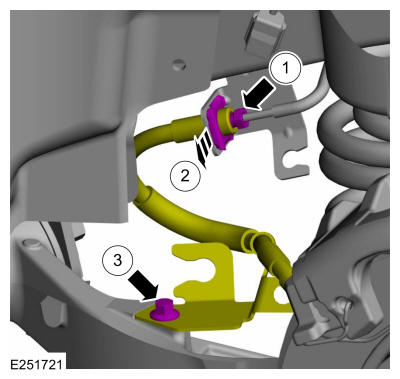

1. Disconnect the brake tube fitting.
  Torque: 159 lb.in (18 Nm)
2. Remove the clip and detach the brake hose from the bracket.
3. Remove the bolt and detach the bracket.
  Torque: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY

All vehicles

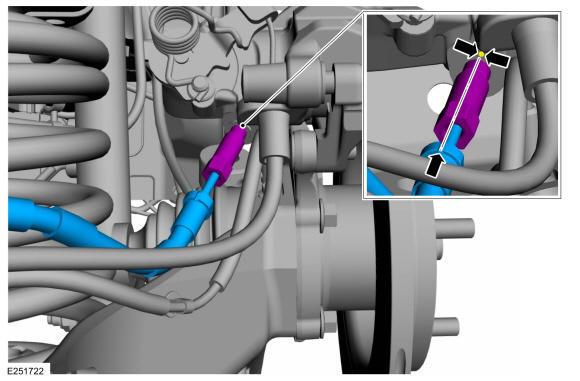

Disconnect the brake hose fitting and remove the brake flexible hose.
Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
