Rear Brake Disc: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation instructions.
- Remove the wheel and tire. Refer to: Wheel and Tire .
-
NOTE: Make sure new bolts are installed.

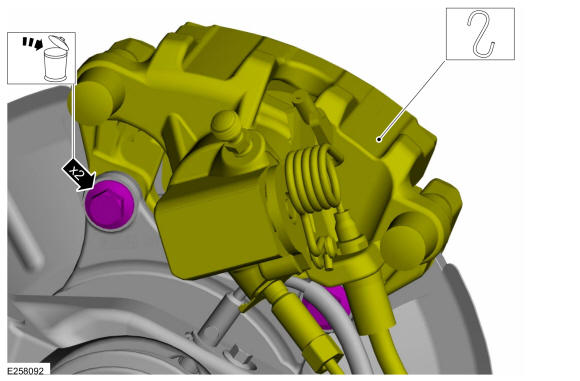

Remove the bolts and position the brake caliper and anchor plate assembly aside. Discard the bolts.
Torque: 46 lb.ft (63 Nm)

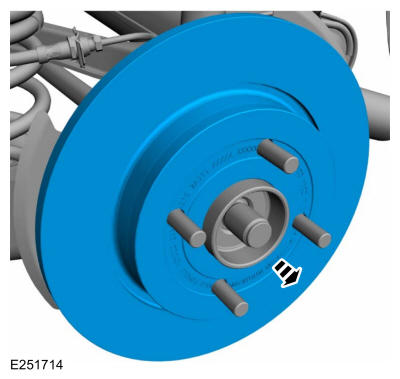

- Remove the brake disc.
