Rear Brake Disc Shield: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
Vehicles With: FWD
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the wheel hub. Refer to: Wheel Hub - Vehicles With: Rear Disc Brakes .

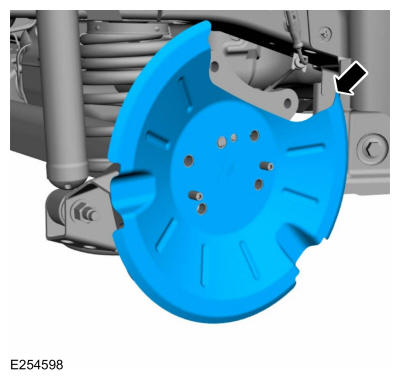

- Remove the brake disc shield.
Vehicles With: AWD
- Remove the wheel bearing and wheel hub. Refer to: Wheel Bearing and Wheel Hub - Vehicles With: Rear Disc Brakes .

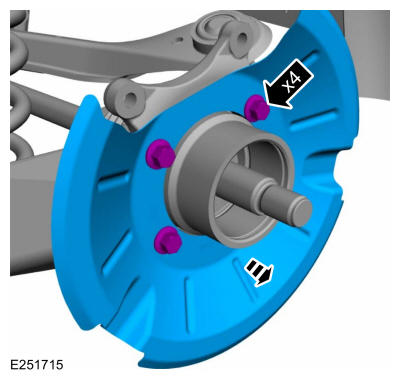

- Remove the bolts and the brake disc shield.
Torque: 80 lb.in (9 Nm)
