Rear Brake Caliper: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

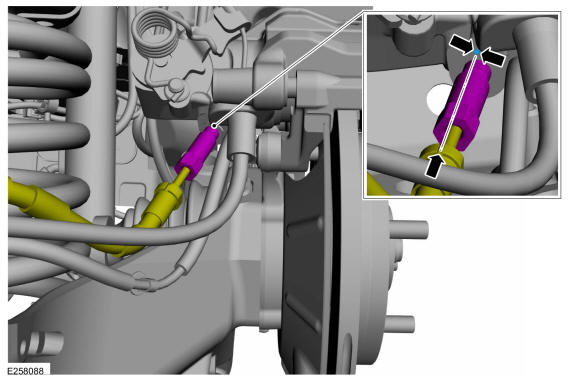

Disconnect the rear brake flexible hose from caliper.
Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY

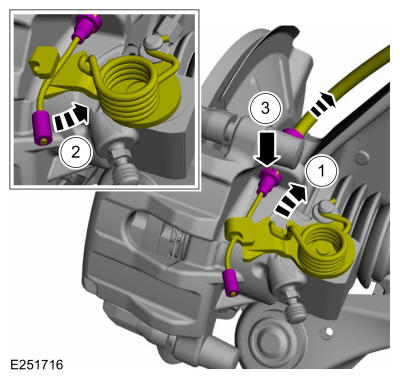

1. Rotate the brake caliper lever.
2. Detach the parking brake cable from the brake caliper lever.
3. Detach the parking brake cable from the brake caliper bracket.
Courtesy of FORD MOTOR COMPANY

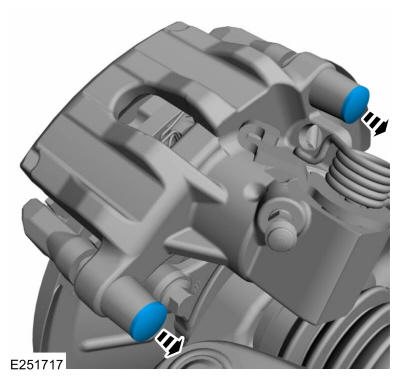

Remove the caps.

Courtesy of FORD MOTOR COMPANY

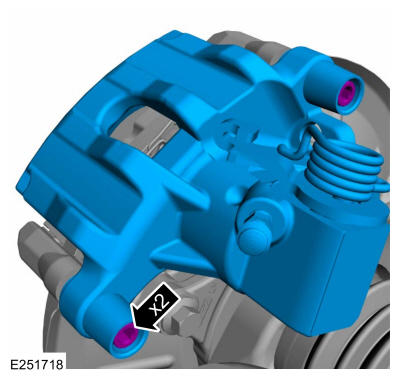

Remove the brake caliper guide pin bolts and the brake caliper.
Torque: 15 lb.ft (21 Nm)

Courtesy of FORD MOTOR COMPANY
