Parking Brake Control: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LHD shown, RHD similar.

All vehicles

Remove the floor console. Refer to: Floor Console .

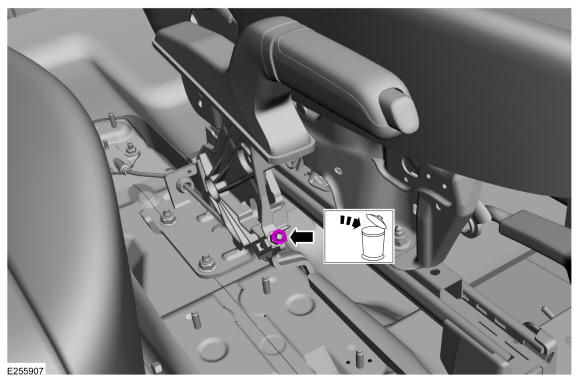

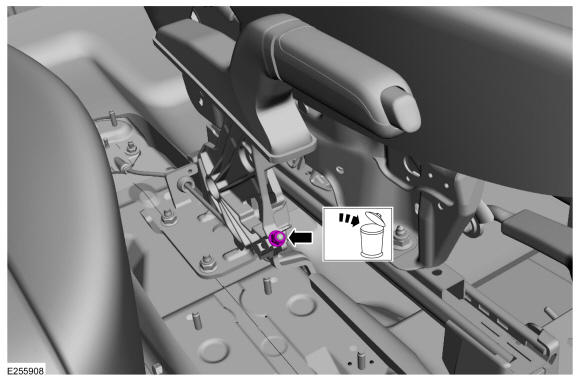

Remove and discard the lock nut.

Courtesy of FORD MOTOR COMPANY
Remove and discard the parking brake cable adjustment nut.

Courtesy of FORD MOTOR COMPANY
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
1.5L

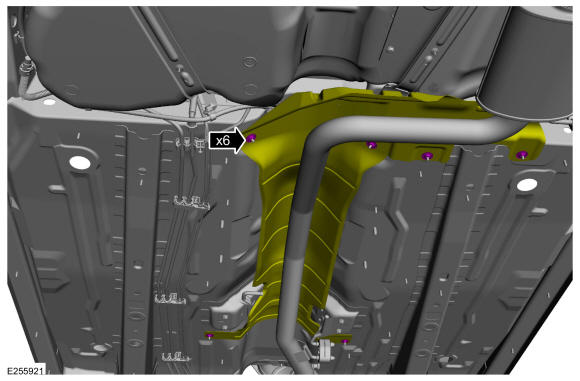

Remove the nuts and the heat shields.
Torque: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY

2.0L

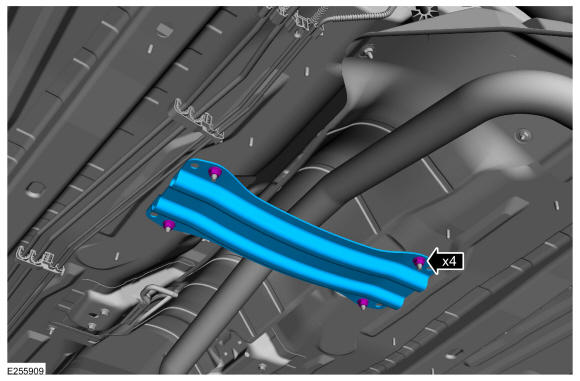

Remove the nuts and the crossbrace.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

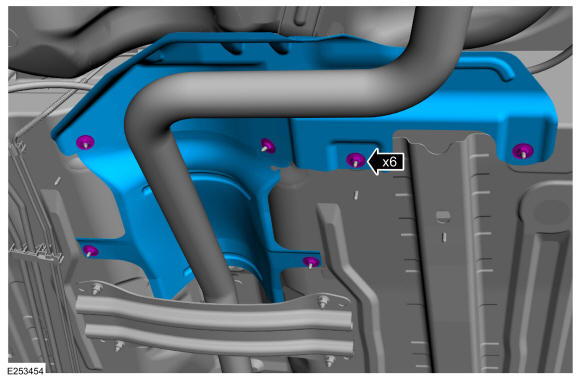

Remove the nuts and position the heat shield to allow access to the parking brake cable equalizer.
Torque: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles

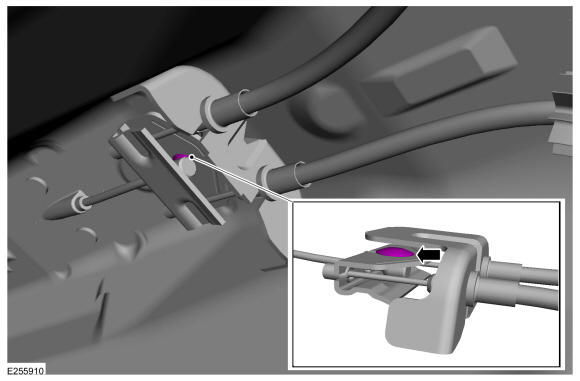

Remove the parking brake cable equalizer plug.

Courtesy of FORD MOTOR COMPANY

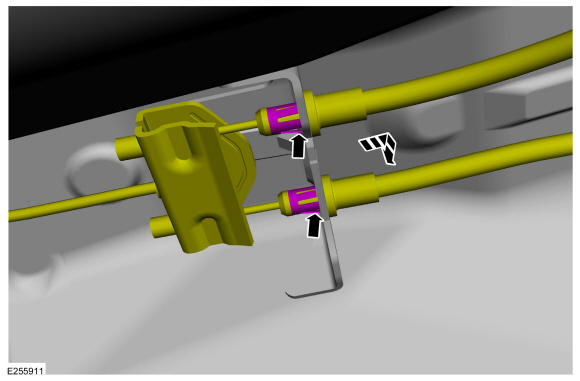

Press inward on the tabs and detach the parking brake cables from the bracket.

Courtesy of FORD MOTOR COMPANY

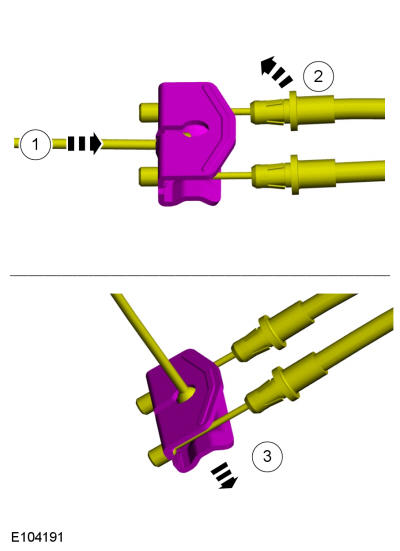

1. Align the end of the front cable with the hole in the equalizer.
2. Rotate both rear cables upward.
3. Disconnect the front cable from the equalizer.
Courtesy of FORD MOTOR COMPANY

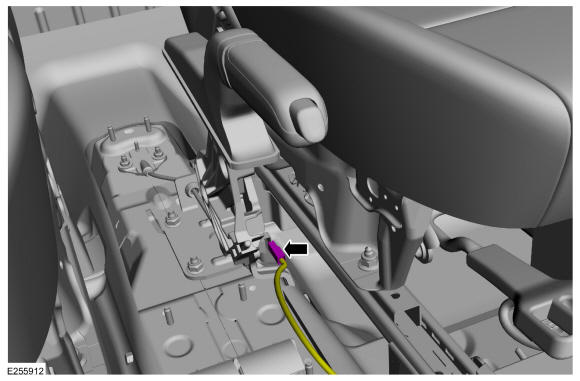

Disconnect the parking brake switch electrical connector.

Courtesy of FORD MOTOR COMPANY

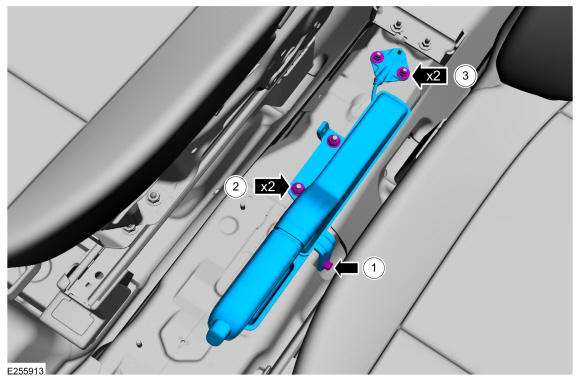

1. Remove the bolt.
  Torque: 18 lb.ft (25 Nm)
2. Remove the nuts.
  Torque: 18 lb.ft (25 Nm)
3. Remove the nuts and the parking brake control and front cable assembly.
  Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
