Parking Brake Cable - Vehicles With: Rear Disc Brakes: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
- Detach the parking brake control boot and position the boot upward on the handle.
- Remove and discard the lock nut.
- Loosen the parking brake cable adjustment nut 5 full turns.
- Rear on both sides. Remove the wheel and tire. Refer to: Wheel and Tire
.
Front wheel drive (FWD) vehicles with 1.5L Duratec and 1.5L Duratorque engines

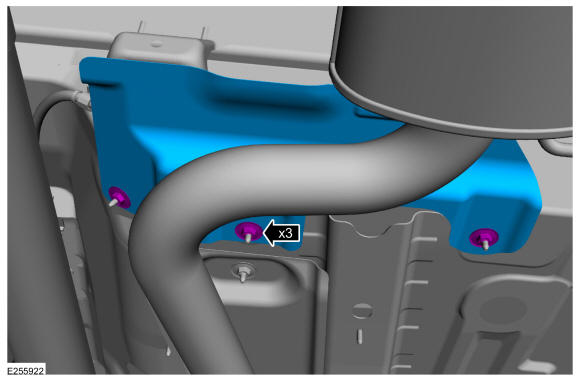

- Remove the nuts and the heat shields.
Torque: 27 lb.in (3 Nm)
Front wheel drive (FWD) vehicles with 2.0L Duratec-HE engine
- Remove the nuts and the crossbrace.
Torque: 18 lb.ft (25 Nm)
- Remove the nuts and position the heat shield to allow access to the parking brake cable equalizer.
Torque: 27 lb.in (3 Nm)
Four wheel drive (4WD) vehicles
- Remove the nuts and the exhaust heat shield.
Torque: 27 lb.in (3 Nm)
All vehicles
- Remove the parking brake cable equalizer plug.
- Press inward on the tabs and detach the parking brake cables from the bracket.
-
- Align the end of the front cable with the hole in the equalizer.
- Rotate both rear cables upward.
- Disconnect the front cable from the equalizer.
- On both sides.

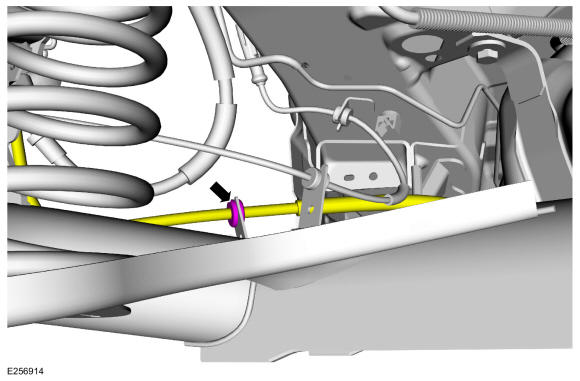

- Rotate the brake caliper lever.
- Detach the parking brake cable from the brake caliper lever.
- Detach the parking brake cable from the bracket.
-
NOTE: FWD cable shown, 4WD cable similar.
On both sides. Detach the parking brake cable from the bracket.
-
- Remove the bracket fasteners.
Torque: Front wheel drive (FWD) nuts: 18 lb.ft (25 Nm) Four wheel drive (4WD) bolts: 18 lb.ft (25 Nm)

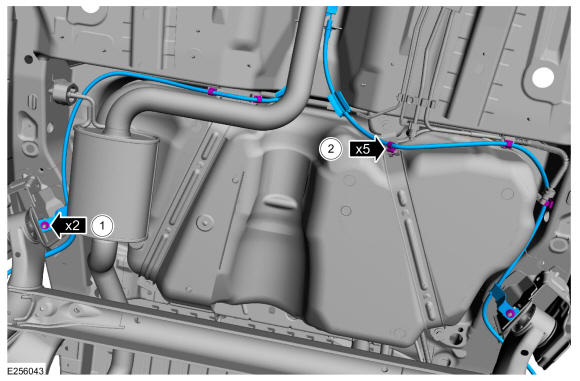

- Detach the cable retainers and the remove the rear parking brake cables.
- Remove the bracket fasteners.
