Front Brake Flexible Hose: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Remove the wheel and tire. Refer to: Wheel and Tire .

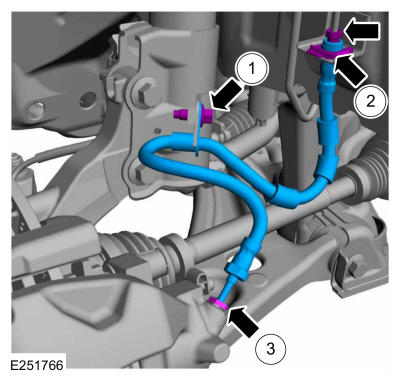

1. Remove the brake flexible hose bracket bolt.
2. Disconnect the brake tube fitting and remove the brake hose clip.
3. Loosen the brake hose fitting and remove the brake flexible hose.

Courtesy of FORD MOTOR COMPANY
