Front Brake Flexible Hose: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Make sure that the brake hose is not twisted and correctly aligned when tightening the brake flexible hose fitting or damage to the brake flexible hose may occur.

    1. Install the brake flexible hose bracket bolt.

      Torque: 18 lb.ft (25 Nm)

    2. Position the brake hose, install the clip and connect the brake tube fitting.

      Torque: 159 lb.in (18 Nm)

    3. Tighten the brake flexible hose fitting.

      Torque: 159 lb.in (18 Nm)

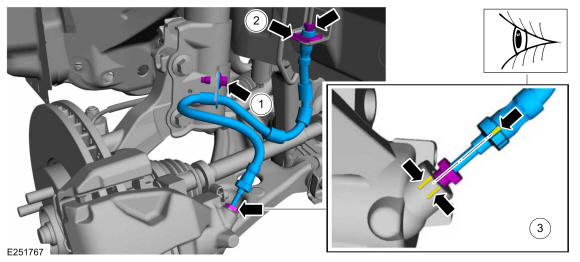

    GFD324561Courtesy of FORD MOTOR COMPANY
  2. Bleed the brake system.
  3. Install the wheel and tire. Refer to: Wheel and Tire .
