Front Brake Disc: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the wheel and tire. Refer to: Wheel and Tire .
NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

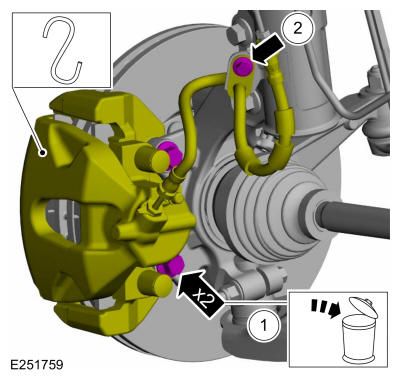

Remove and position aside the brake caliper and anchor plate.
1. NOTE: Make sure that new bolts are installed.

  Remove the brake caliper anchor plate bolts. Discard the bolts.

  Torque: 81 lb.ft (110 Nm)
2. Remove the brake flexible hose bracket bolt.
  Torque: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY

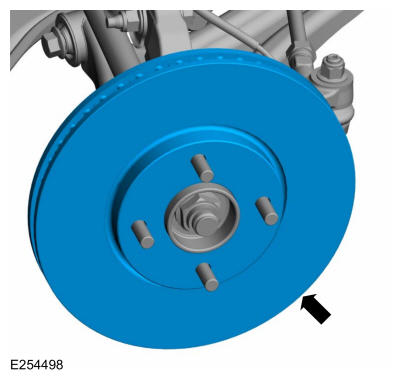

Remove the brake disc.

Courtesy of FORD MOTOR COMPANY

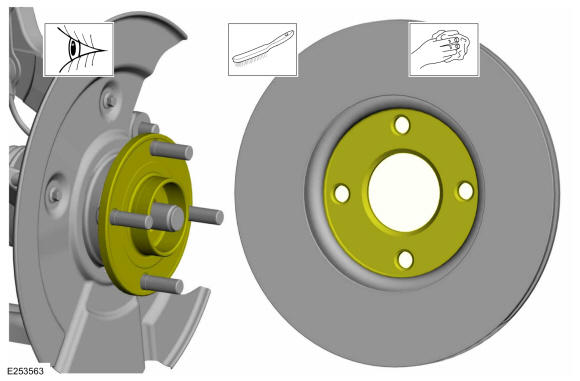

NOTE: Make sure that the mating faces are clean and free of foreign material.

Clean the brake disc-to-wheel hub mating surfaces.

Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

Courtesy of FORD MOTOR COMPANY
