Front Brake Caliper: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

NOTE: Removal steps in this procedure may contain installation details.

Remove the wheel and tire. Refer to: Wheel and Tire .
NOTE: Make sure that all openings are sealed.

NOTE: Make sure that the brake hose is not twisted and is correctly located.

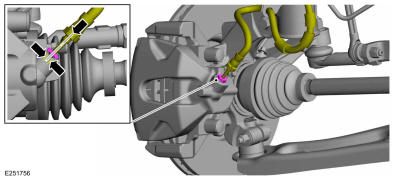

Loosen the brake hose fitting and disconnect the brake hose.

Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY

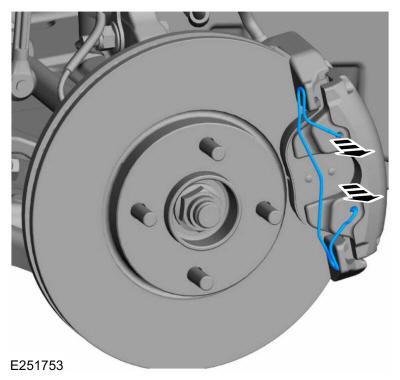

Remove the brake caliper spring.

Courtesy of FORD MOTOR COMPANY

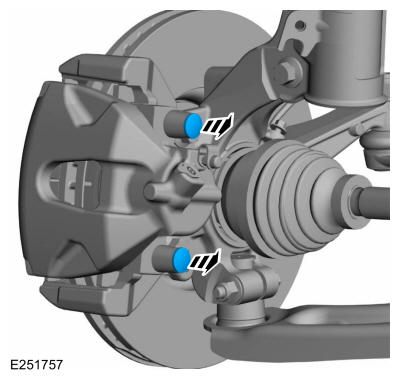

Remove the caps.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.

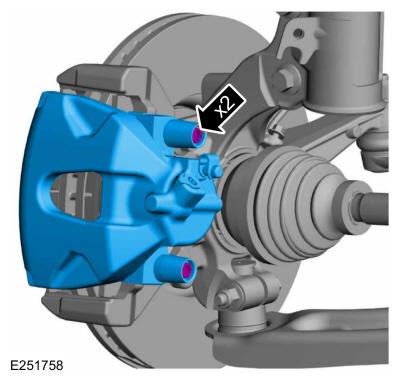

Remove the brake caliper guide pin bolts and the caliper.

Torque: 21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY

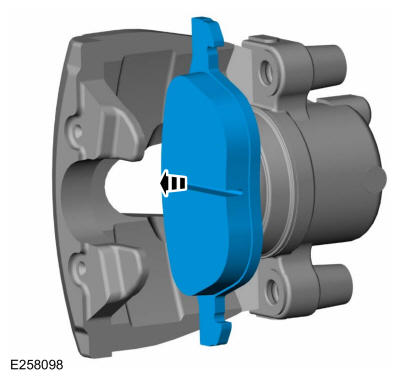

Remove the outboard brake pad.

Courtesy of FORD MOTOR COMPANY
Remove the inboard brake pad.

Courtesy of FORD MOTOR COMPANY
