Front Brake Caliper: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

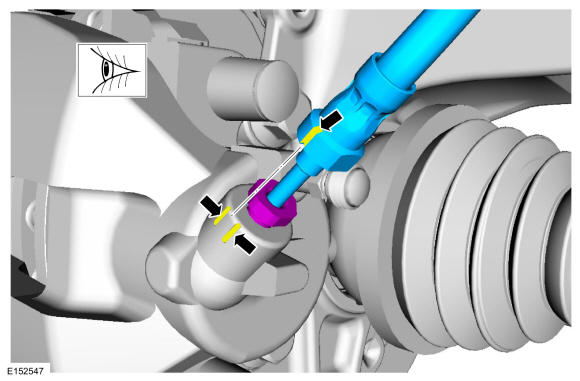

NOTE: Make sure that the brake hose is not twisted and correctly aligned when tightening the brake flexible hose fitting or damage to the brake flexible hose may occur.

To install, reverse the removal procedure. Tighten the brake flexible hose fitting.

Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
Bleed the brake system. Refer to: Brake System Pressure Bleeding .
