Front Brake Caliper Anchor Plate: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the brake pads. Refer to: Brake Pads .
-
NOTE: Make sure that new bolts are installed.

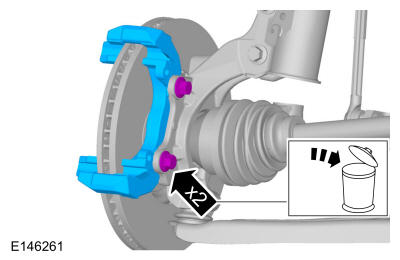

Remove the bolts and the brake caliper anchor plate. Discard the bolts.
Torque: 81 lb.ft (110 Nm)
