Battery Tray: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

Remove the battery. Refer to: Battery .
1.0L EcoBoost (92kW/125PS) (B7)
NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.

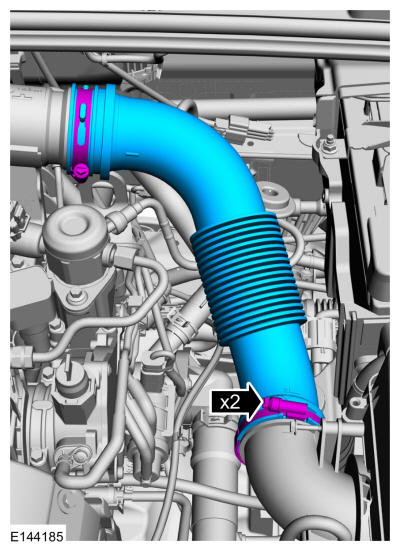

Remove the air cleaner outlet tube.

Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

1.5L

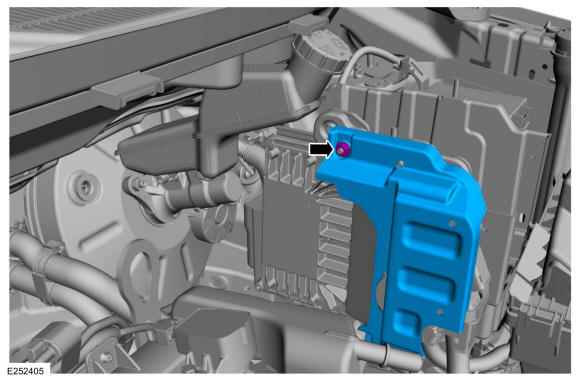

Remove the nut and the PCM cover.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles

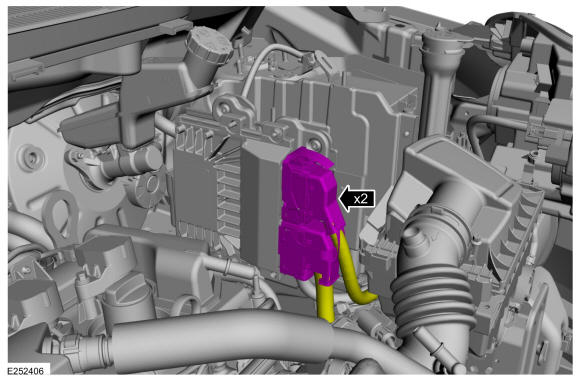

NOTE: Gas vehicle with 2 PCM electrical connectors shown, diesel vehicles have a PCM with 3 electrical connectors.

Disconnect the PCM electrical connectors.

Courtesy of FORD MOTOR COMPANY

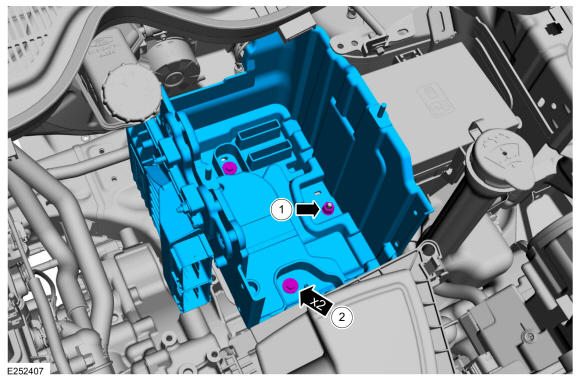

1. Remove the battery tray nut.
  Torque: 55 lb.in (6.2 Nm)
2. Remove the bolts and the battery tray.
  Torque: 55 lb.in (6.2 Nm)
Courtesy of FORD MOTOR COMPANY

1.5L

NOTE: The following steps are only necessary when installing a new component.

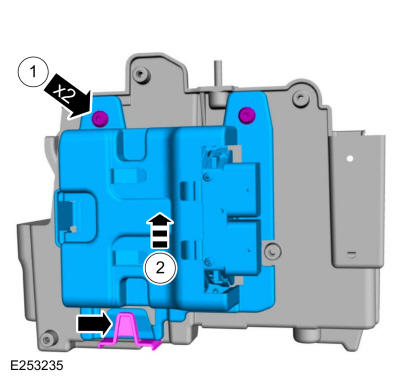

1. Remove the PCM screws.
2. Lifting upward, remove the PCM from the battery tray.
Courtesy of FORD MOTOR COMPANY

1.5L
NOTE: The following steps are only necessary when installing a new component.

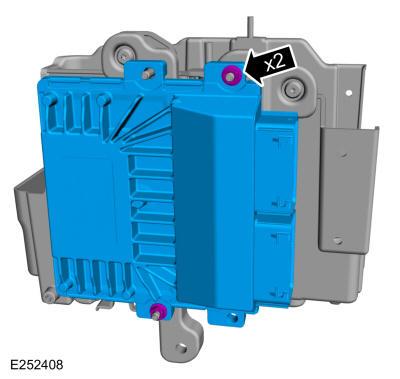

Remove the nuts and the PCM.

Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

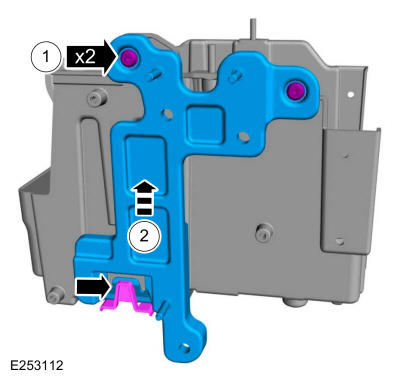

1. Remove the PCM mounting bracket screws.
2. Lifting upward, remove the PCM mounting bracket from the battery tray.
Courtesy of FORD MOTOR COMPANY

All vehicles

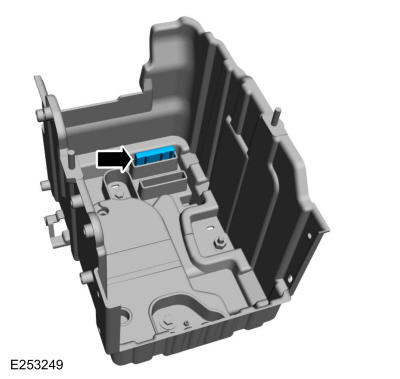

If equipped, remove the battery spacer.

Courtesy of FORD MOTOR COMPANY
