Removal And Installation: Hood: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

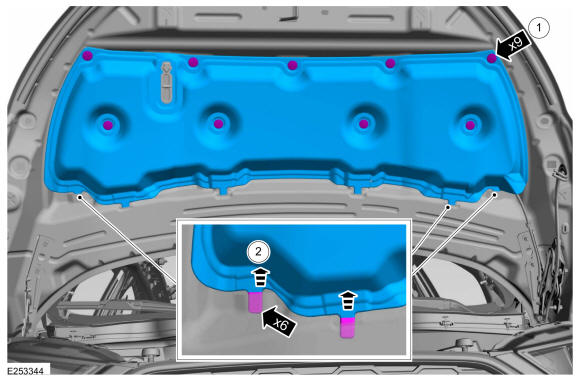

1. Remove the retainers and the hood insulation.
2. Pull up and remove the hood insulation.
Courtesy of FORD MOTOR COMPANY

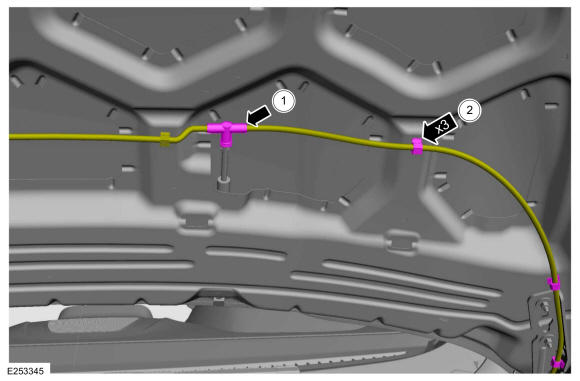

1. Detach the windshield washer hose coupling.
2. Detach the retainers and position the windshield washer hose from the hood.
Courtesy of FORD MOTOR COMPANY

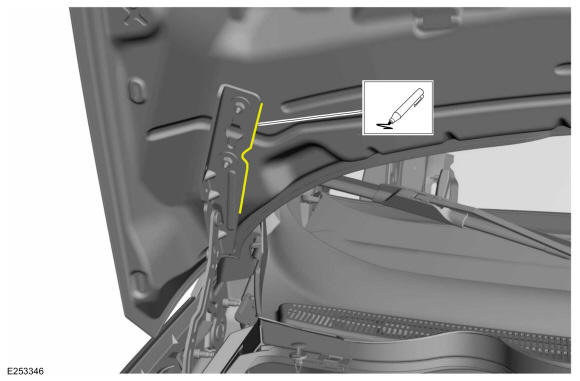

On both sides. Index-mark the hood hinge location to aid in hood installation.

Courtesy of FORD MOTOR COMPANY

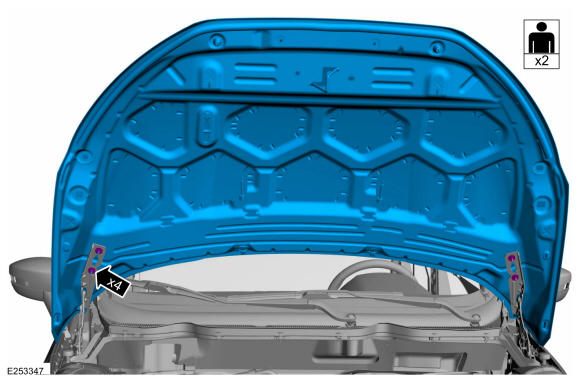

NOTE: An assistant is necessary for the support and removal of the hood.

Remove the nuts and the hood.

Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

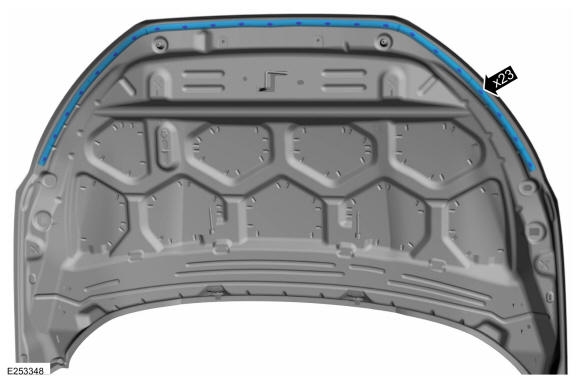

NOTE: This step is only necessary when installing a new component.

Remove the retainers and the hood pad assembly.

Courtesy of FORD MOTOR COMPANY
