Removal And Installation: Fender: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: LH shown, RH similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the fender splash shield. Refer to: Fender Splash Shield .
Remove the headlamp assembly. Refer to: Headlamp Assembly .

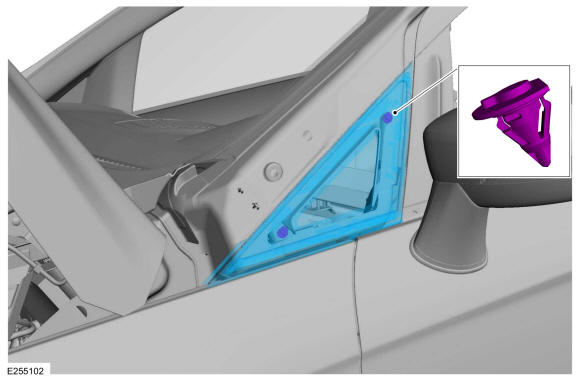

Release the retainers and remove the door frame moulding.

Courtesy of FORD MOTOR COMPANY

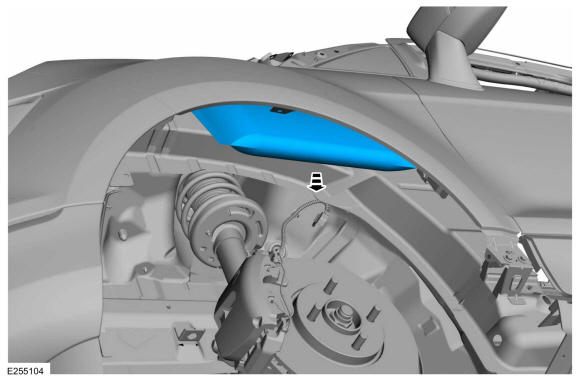

Remove the fender insulation.

Courtesy of FORD MOTOR COMPANY

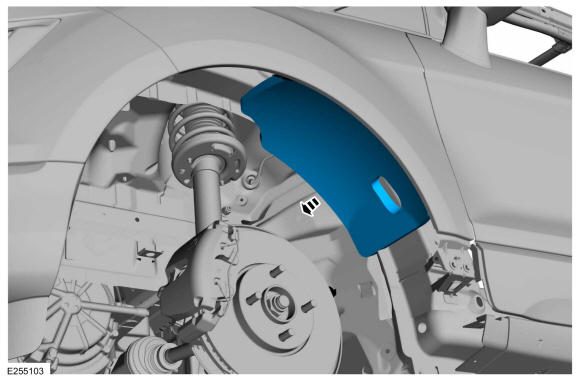

Remove the fender baffle.

Courtesy of FORD MOTOR COMPANY

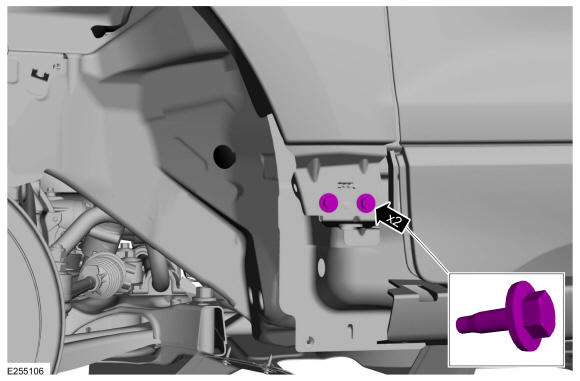

Remove bolts and front bumper to fender bracket.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

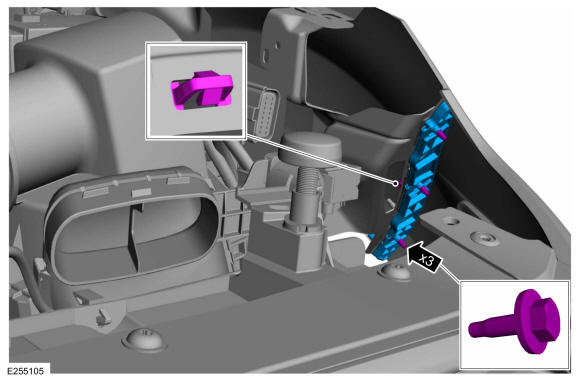

Remove the bolts.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

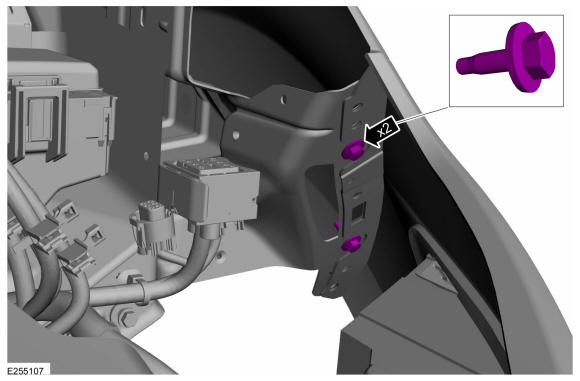

Remove the fender mounting bracket bolts.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

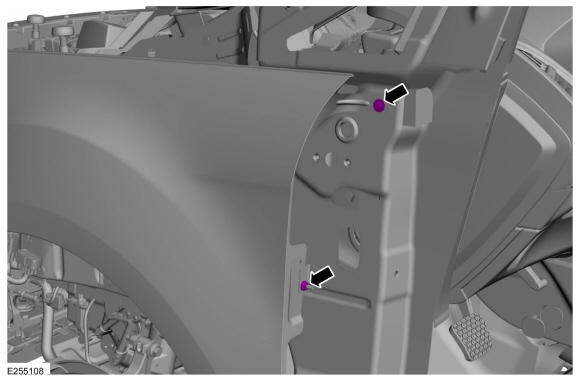

Remove the fender to front reinforcement pillar bolt and the nut.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

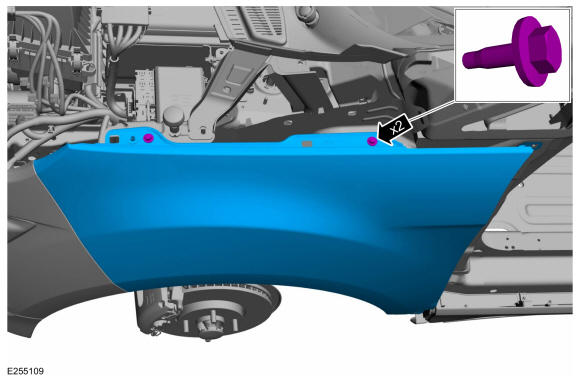

Remove the upper mounting bolts and the fender.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
