Fender Splash Shield: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
LH shown, RH similar.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the Wheels and Tires. Refer to: Wheel and Tire .
- Remove the Front Fender Moulding. Refer to: Front Fender Moulding .
-

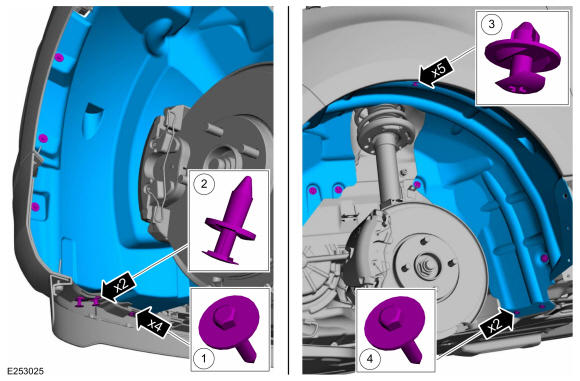

- Remove the screws and washers.
- Remove the clips.
- Remove the rivet push pins.
- Remove the screws and washers.
