Cowl Panel: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

Remove the cowl panel grille. Refer to: Cowl Panel Grille .

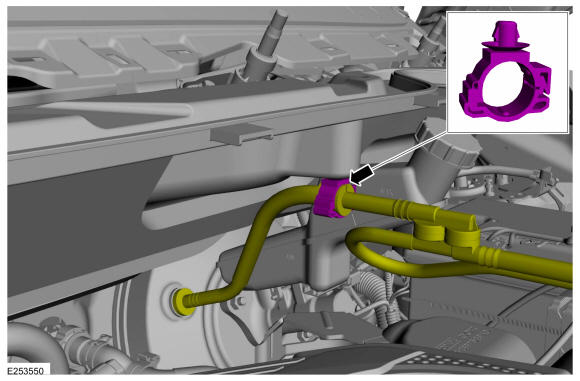

Detach the retainer and position the inlet manifold to brake booster vacuum pipe.

Courtesy of FORD MOTOR COMPANY

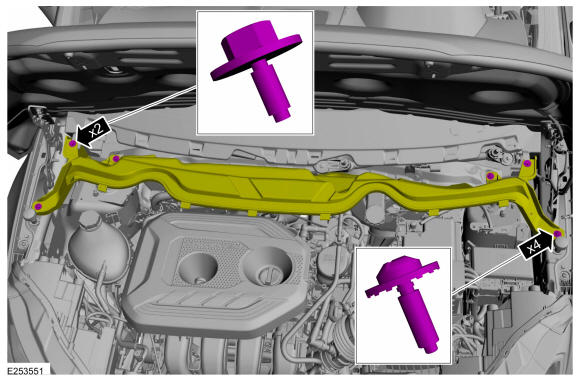

Remove the cowl panel mounting bolts.

Courtesy of FORD MOTOR COMPANY

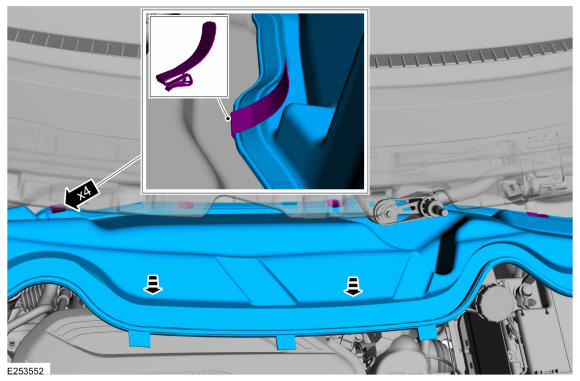

Gently pull from the clips and remove the cowl panel.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

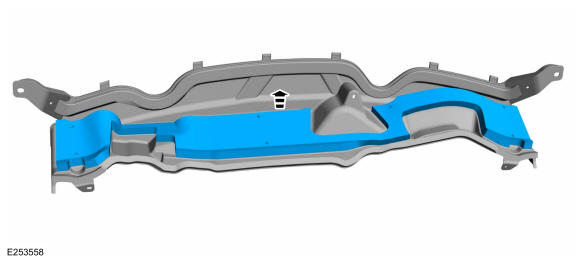

Remove the noise insulator from cowl panel.

Courtesy of FORD MOTOR COMPANY
