Cowl Panel Grille: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

Remove the windshield wiper pivot arm. Refer to: Windshield Wiper Pivot Arm .
Remove the locking clips.

Courtesy of FORD MOTOR COMPANY

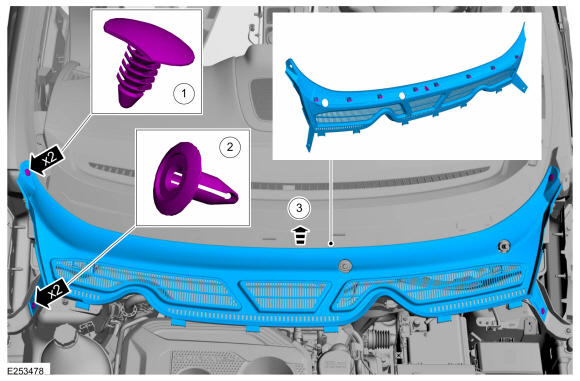

1. Remove the trim pins.
2. Remove the cowl vent side seal to apron scrivets.
3. Gently pull and remove the cowl panel grille.

Courtesy of FORD MOTOR COMPANY
