Active Grille Shutter Actuator: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

Remove the active grill shutter. Refer to: Active Grille Shutter - 2.0L Duratec-HE (125kW/170PS) - MI4 . Refer to: Active Grille Shutter - 1.0L EcoBoost (92kW/125PS) .

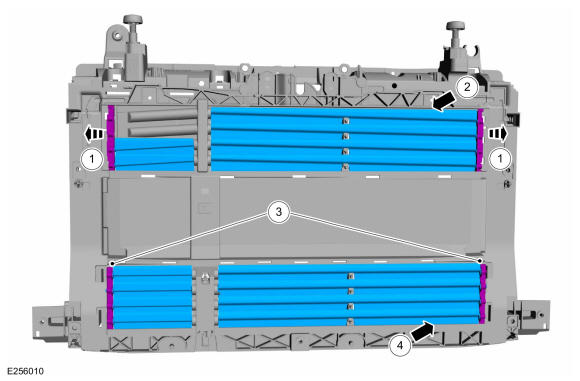

1. Release the upper vanes from active grill shutter.
2. Remove the upper vanes.
3. Release the lower vanes from the active grill shutter.
4. Remove the lower vanes.
Courtesy of FORD MOTOR COMPANY

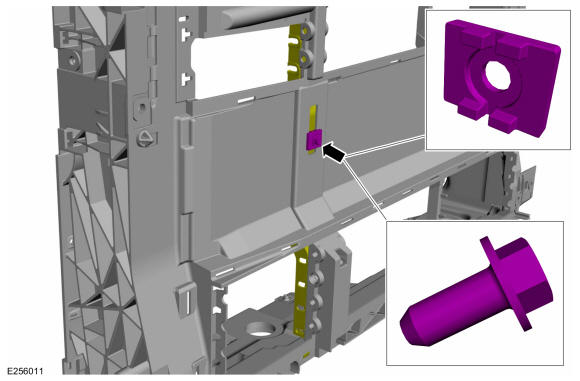

Remove the active grill shutter vanes lever mounting bolt and the slider.

Courtesy of FORD MOTOR COMPANY

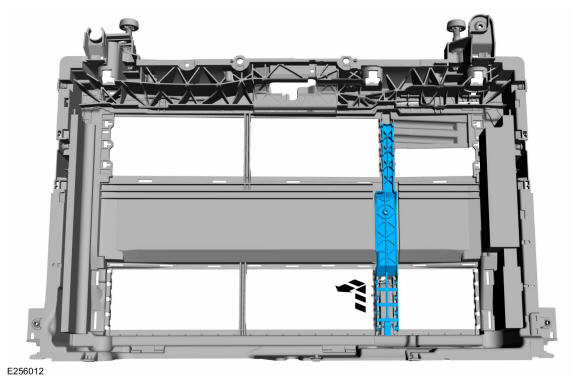

Remove the active grill shutter vanes lever.

Courtesy of FORD MOTOR COMPANY

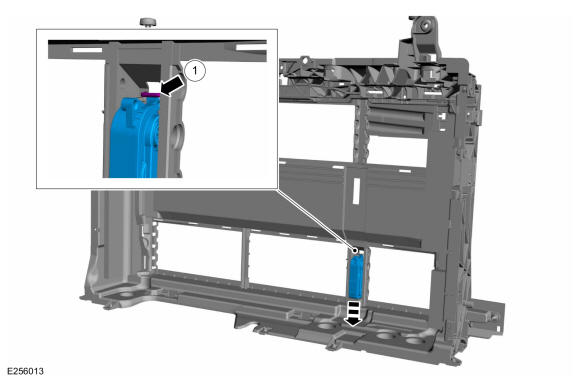

1. Detach the lock.
2. Remove the active grill shutter actuator.

Courtesy of FORD MOTOR COMPANY
