Active Grille Shutter - 2.0L Duratec-HE (125kW/170PS) - MI4: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Support the hood with a commercially available hood prop.

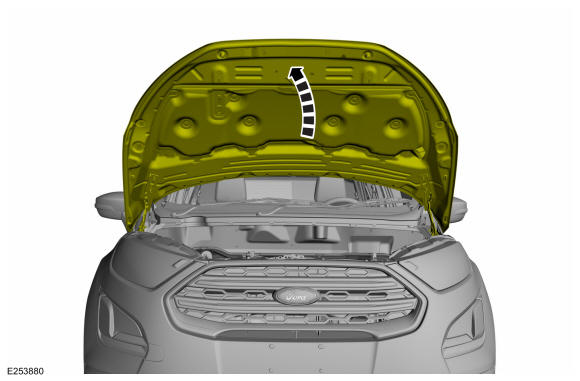

Open the Hood.

Courtesy of FORD MOTOR COMPANY
Remove the front bumper. Refer to: Front Bumper .
Remove the Air cleaner. Refer to: Air Cleaner .

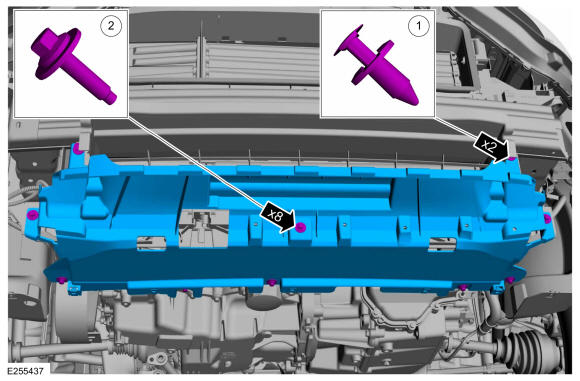

1. Disconnect the engine air temperature electrical controller sensor connector.
2. Remove the radiator grill opening panel support screw.
3. Detach the knobs and remove the radiator grill opening panel support.
Courtesy of FORD MOTOR COMPANY

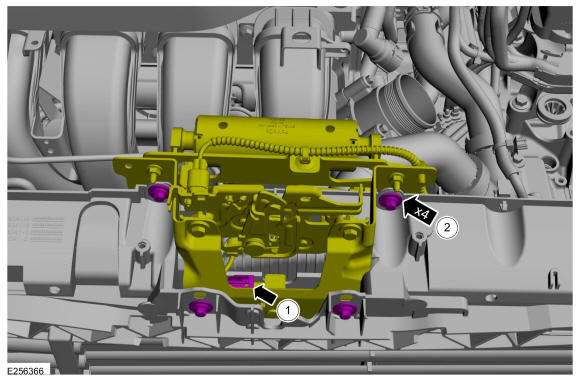

1. If equipped. Disconnect the air bag sensor electrical connector.
2. Remove the bolts and position the hood latch assembly aside.
  Torque: 44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY

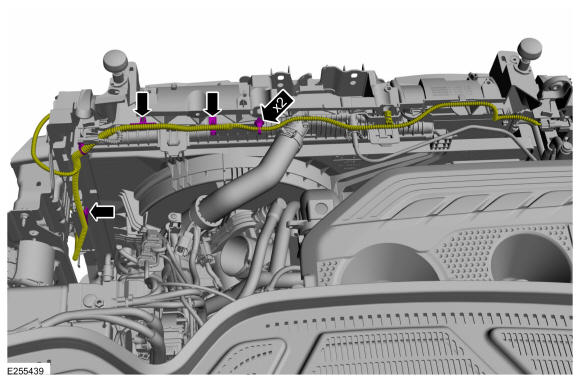

Detach the retainers and position the electrical wiring harness aside.

Courtesy of FORD MOTOR COMPANY

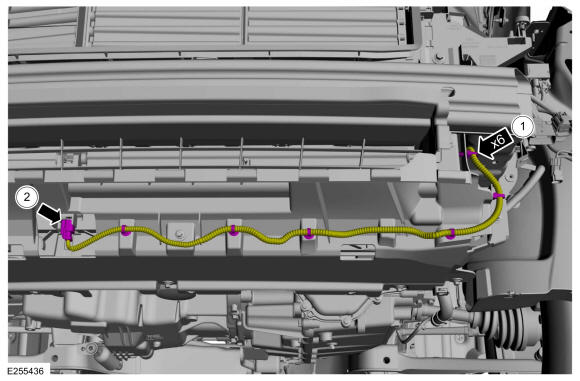

1. Detach the active grille shutter actuator electrical wiring harness retainers.
2. Disconnect the active grille shutter actuator electrical connector and position the wiring harness aside.
Courtesy of FORD MOTOR COMPANY

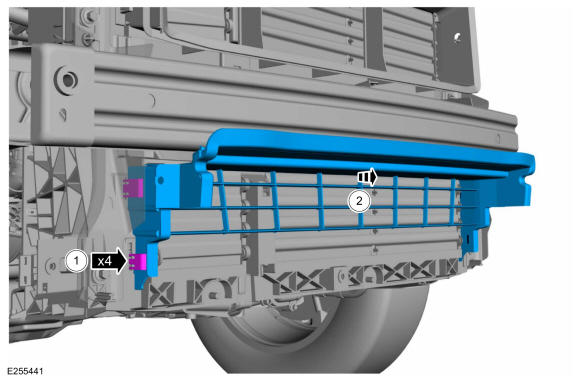

1. Remove the push pin type retainers.
2. Remove the bolts and the radiator lower air deflector.
  Torque: 42 lb.in (4.8 Nm)
Courtesy of FORD MOTOR COMPANY
1. Detach the knobs.
2. Remove the radiator grill opening panel reinforcement support.
Courtesy of FORD MOTOR COMPANY

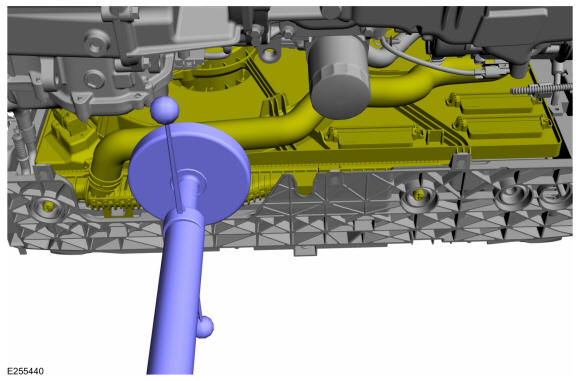

Position and secure the vehicle/axle stand under the radiator assembly. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

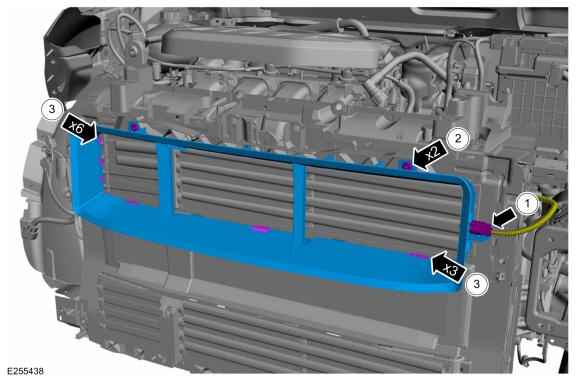

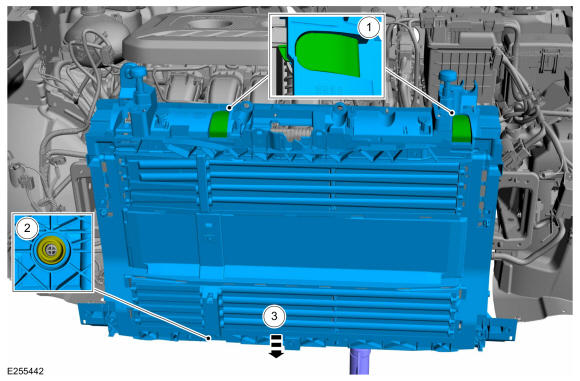

1. Remove the radiator upper mounting brackets and the radiator upper isolators.
2. Release the active grill shutter from radiator mounting rubber grommets.
3. Remove the active grill shutter.

Courtesy of FORD MOTOR COMPANY
