Trough Assembly: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the roof opening panel glass. Refer to: Roof Opening Panel Glass .

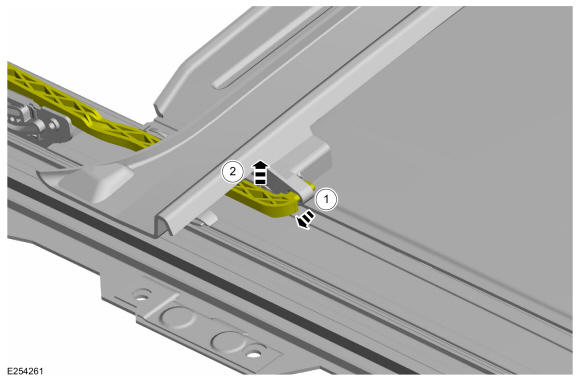

  2. On both sides.

    1. Pull out the trough arm to disconnect from the trough assembly.
    2. Lift the trough arm out of the trough assembly.

    GFD329254Courtesy of FORD MOTOR COMPANY

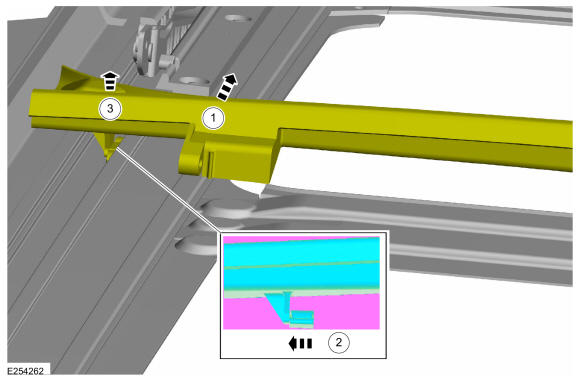

  3. On both sides.

    1. Pull the trough outward.
    2. Release the retaining tab.
    3. Lift the trough out of the guides

    GFD329255Courtesy of FORD MOTOR COMPANY

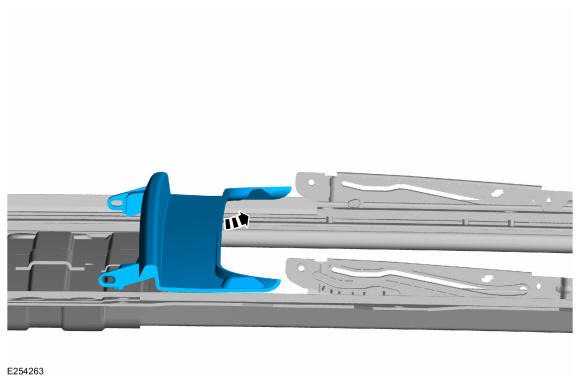

  4. Remove the trough assembly.
GFD329256Courtesy of FORD MOTOR COMPANY
