Roof Opening Panel Shield: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the roof opening panel glass. Refer to: Roof Opening Panel Glass .
  2. Remove the trough assembly. Refer to: Trough Assembly .
  3. Slide the roof opening panel shield forward halfway.

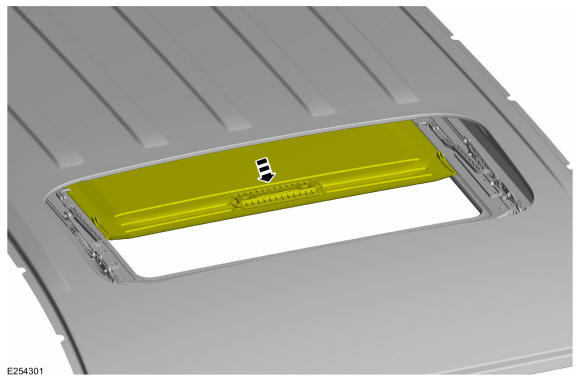

    GFD329251Courtesy of FORD MOTOR COMPANY
  4. NOTE: The sub steps should be performed together as a single step.

    Disengage the LH front corner of the roof opening panel shield from the guide track.

    1. Pull up on the center of the roof opening panel shield for clearance.
    2. Pull the LH front roof opening panel shield out and up from the guide rail to disengage the roof opening panel shield throughout from the track.

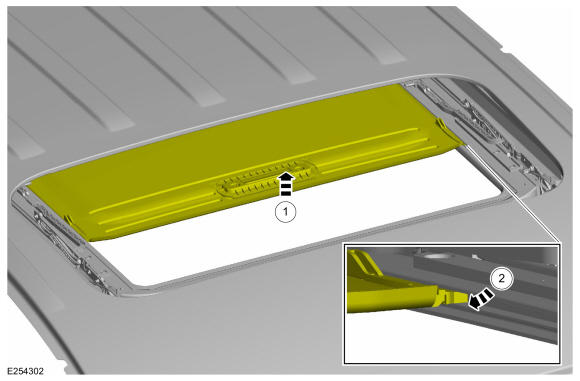

    GFD329252Courtesy of FORD MOTOR COMPANY
  5. NOTE: The sub steps should be performed as a single step.

    Remove the roof opening panel shield.

    1. Pull up at the one side of the roof opening panel shield.
    2. Carefully rotate the roof opening panel shield in a counter clockwise manner to disengage the remaining guide feet and remove the roof opening panel shield.

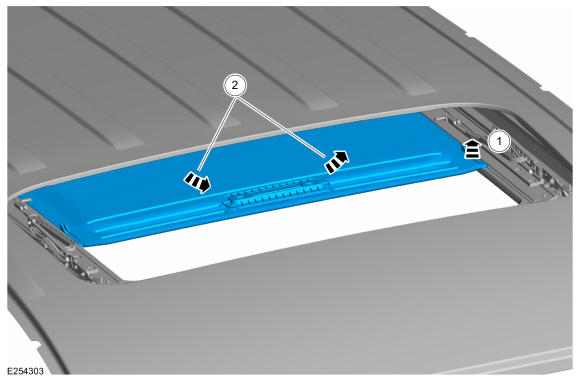

GFD329253Courtesy of FORD MOTOR COMPANY
