Roof Opening Panel Rear Drain Hose: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown in illustration, RH side similar.
- Remove the rear bumper cover. Refer to: Rear Bumper Cover .
- Remove the headliner. Refer to: Headliner .
- Remove the loadspace trim panel. Refer to: Loadspace Trim Panel .

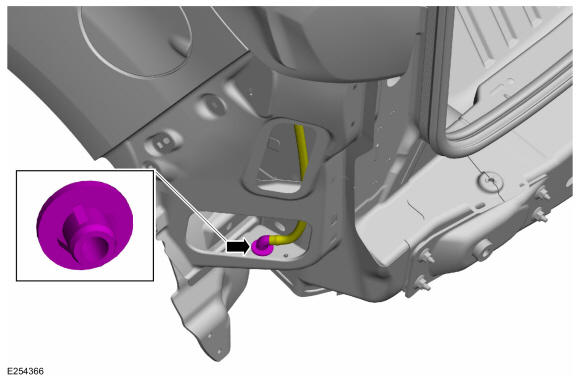

- Disconnect the roof opening panel rear drain hose.

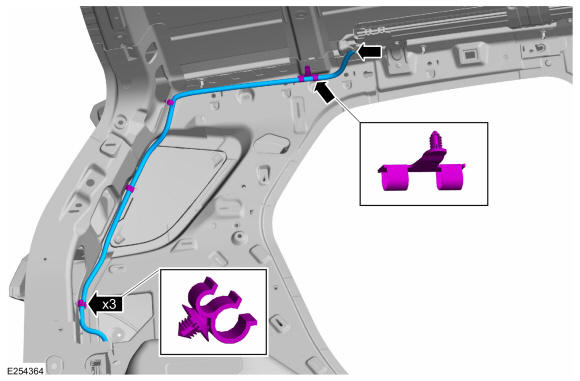

- Detach the retainers and remove the roof opening panel rear drain hose.
