Roof Opening Panel Motor: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

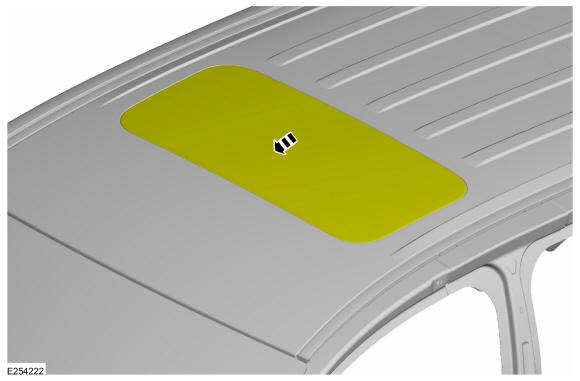

  1. Place the roof opening panel glass to the fully CLOSE position.
    GFD329246Courtesy of FORD MOTOR COMPANY
  2. Place the roof opening panel shield to the fully OPEN position.
    GFD329247Courtesy of FORD MOTOR COMPANY
  3. Remove the overhead console. Refer to: Overhead Console .

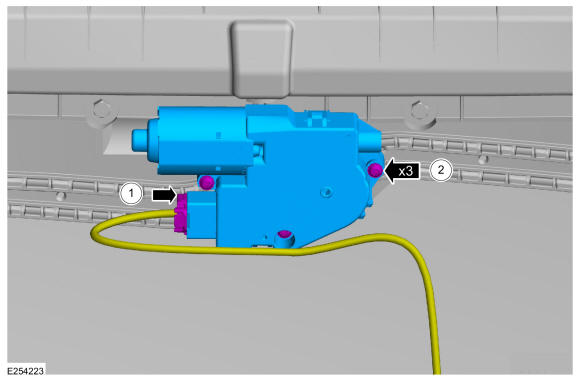

  4. Remove the roof opening panel motor.

    1. Disconnect the roof opening panel motor electrical connector.
    2. Remove the roof opening panel motor to the roof opening panel frame retainers and remove the roof opening panel motor.

      Torque: 31 lb.in (3.5 Nm)

GFD329248Courtesy of FORD MOTOR COMPANY
