Roof Opening Panel Glass: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

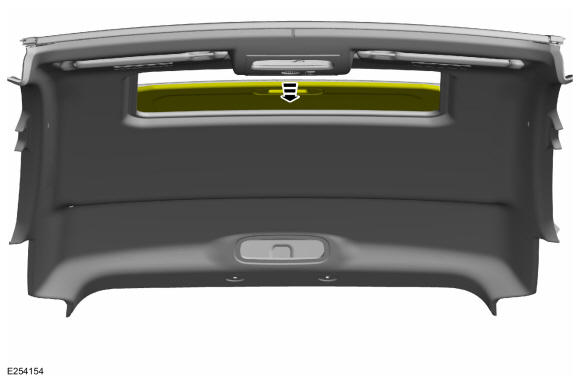

- Place the roof opening panel shield to the fully OPEN position.

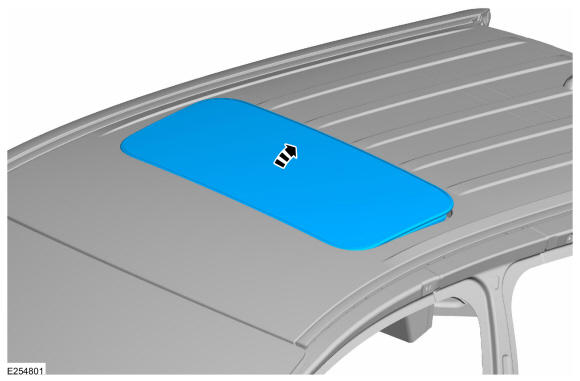

- Place the roof opening panel glass to the VENT position.
-

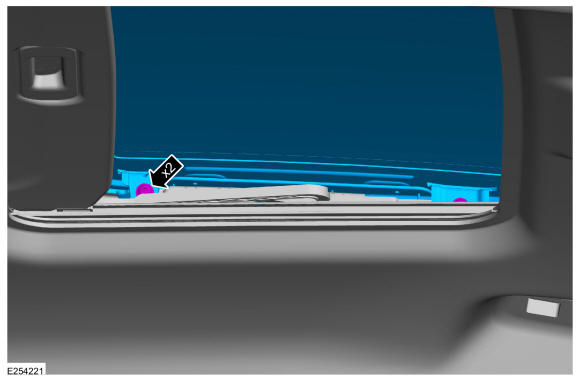

NOTE: LH side shown in illustration, RH side similar.
Remove the retainers.
Torque: 28 lb.in (3.2 Nm)

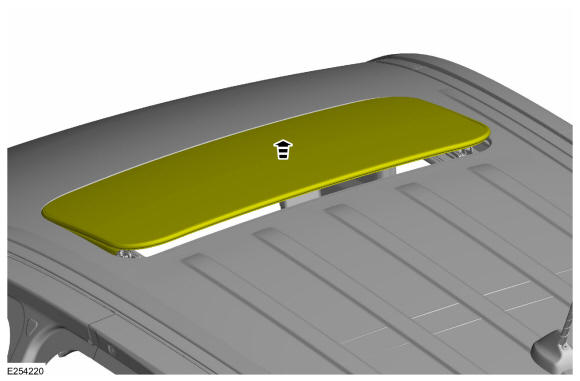

- Remove the roof opening panel glass assembly.
