Roof Opening Panel Front Drain Hose: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown in illustration, RH side similar.
- Remove the headliner. Refer to: Headliner .
- Remove the A-Pillar trim panel. Refer to: A-Pillar Trim Panel .

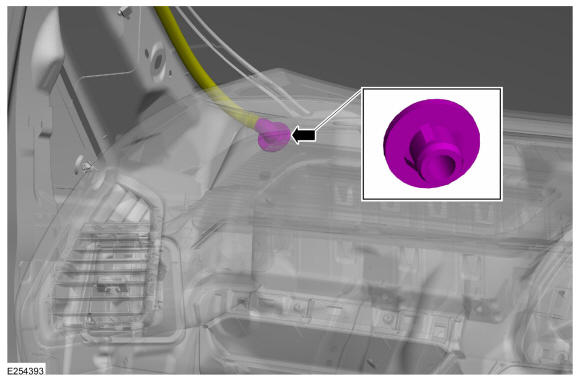

- Detach and position aside the roof opening panel front drain hose.

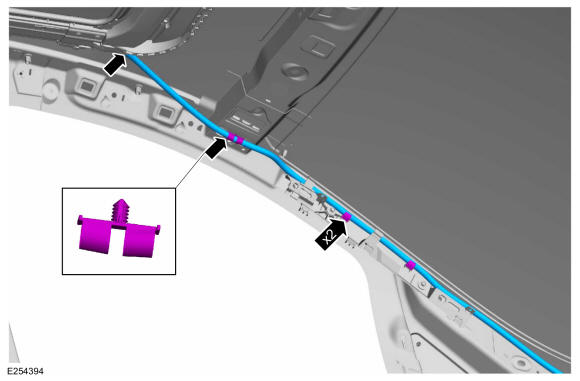

- Detach the retainer, release the clips and remove the roof opening panel front drain hose.
