Roof Opening Panel Frame: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the headliner. Refer to: Headliner .
    1. Disconnect the roof opening panel motor electrical connector.
    2. Disconnect the roof opening panel drain hoses from the corners of the roof opening panel frame.
    GFD329234Courtesy of FORD MOTOR COMPANY

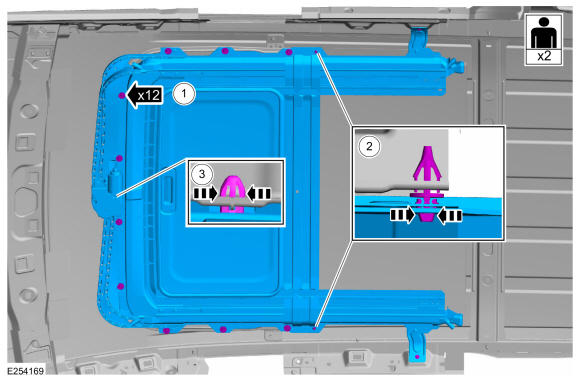

  3. With the help of an assistant. Remove the roof opening panel frame.

    1. Remove the roof opening panel frame bolts.
    2. Release the retaining clips.
    3. Release the front retaining clip and remove the roof opening panel frame.

    GFD329235Courtesy of FORD MOTOR COMPANY

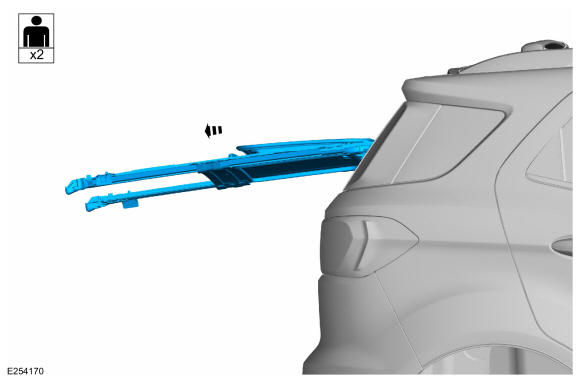

  4. With the help of an assistant. Remove the roof opening panel frame.
    GFD329236Courtesy of FORD MOTOR COMPANY

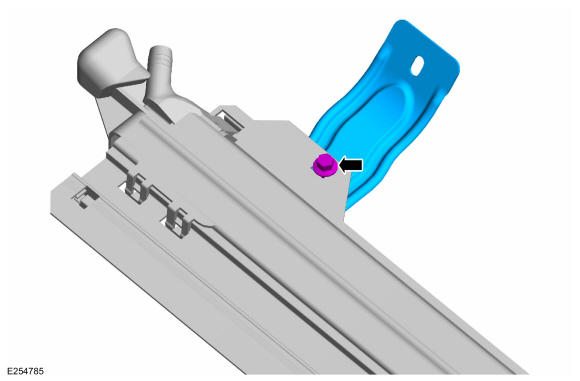

  5. On both sides. Remove the bolt and the roof opening panel bracket.
GFD329237Courtesy of FORD MOTOR COMPANY
