Roof Opening Panel Frame: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

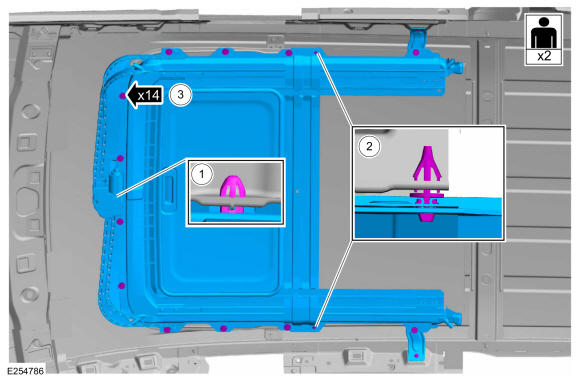

  1. With the help of an assistant. Install the roof opening panel frame.

    1. Attach the front retaining clip.
    2. Attach the retaining clips.
    3. Tighten the bolts finger tight.

    GFD329238Courtesy of FORD MOTOR COMPANY

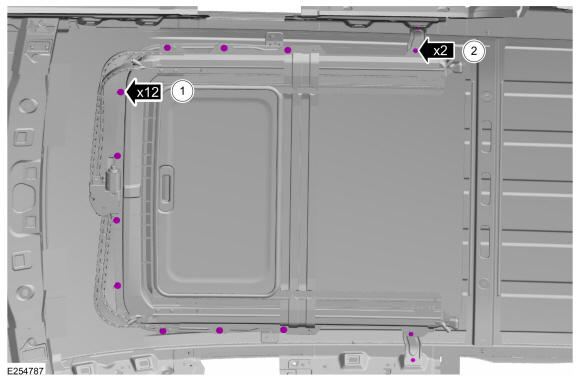

    1. Tighten the roof opening panel frame bolts.

      Torque: 53 lb.in (6 Nm)

    2. Tighten the roof opening panel frame bracket bolts.

      Torque: 80 lb.in (9 Nm)

    GFD329239Courtesy of FORD MOTOR COMPANY

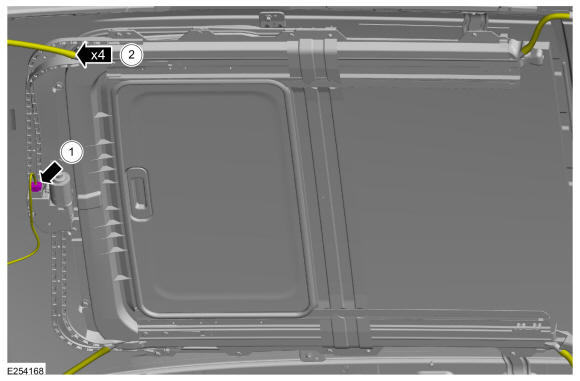

    1. Connect the roof opening panel motor electrical connector.
    2. Connect the roof opening panel drain hoses from the corners of the roof opening panel frame.
    GFD329234Courtesy of FORD MOTOR COMPANY
  4. Install the headliner. Refer to: Headliner .
  5. Align the roof opening panel. Refer to: Roof Opening Panel Alignment .
  6. Initialize the roof opening panel. Refer to: Power Roof Opening Panel Initialization .
