Air Deflector: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Place the roof opening panel glass in the fully OPEN position.

Courtesy of FORD MOTOR COMPANY
NOTE: LH side shown in illustration, RH side similar.

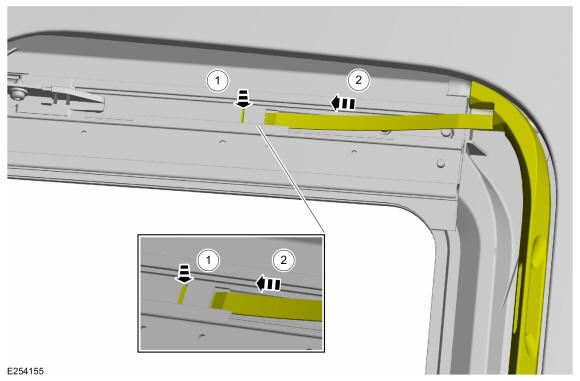

On both sides. Release the air deflector locking tab.
1. Depress the spring steel locating tab downward with a flat-bladed screwdriver. Use the General Equipment: Flat-Bladed Screwdriver
2. Push the air deflector toward the rear of the vehicle.
Courtesy of FORD MOTOR COMPANY

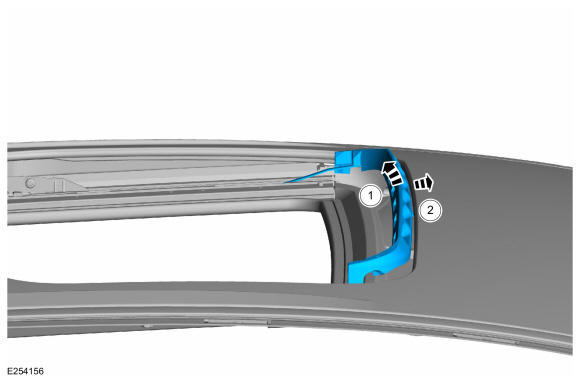

Remove the air deflector assembly.
1. Tilt the air deflector assembly upward.
2. Pull forward to remove air deflector assembly.

Courtesy of FORD MOTOR COMPANY
