Roof Opening Panel Manual Closing
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .
Adjustment
- Remove the overhead console. Refer to: Overhead Console .

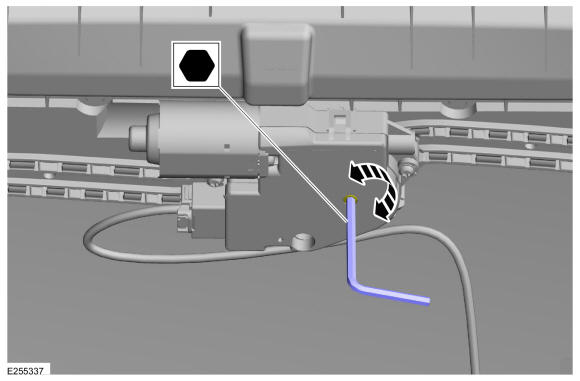

- Rotate the retainer clockwise to close the roof opening panel manually.
