Muffler and Tailpipe - LHD 4WD: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

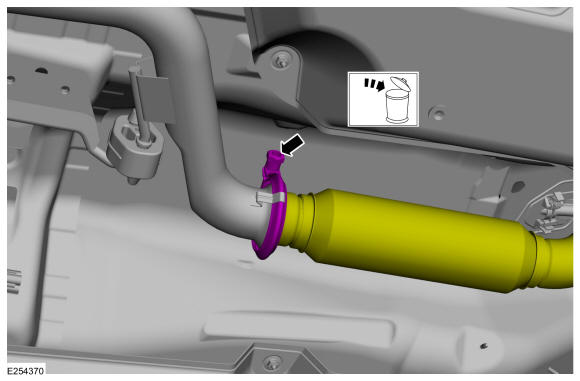

Remove and discard the muffler and catalytic converter flange clamp.

Courtesy of FORD MOTOR COMPANY

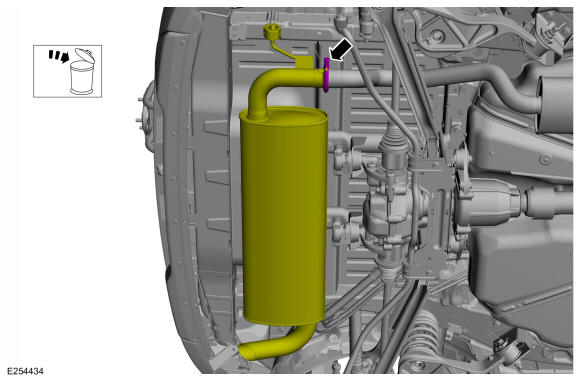

Remove and discard the muffler and tailpipe flange clamp.

Courtesy of FORD MOTOR COMPANY

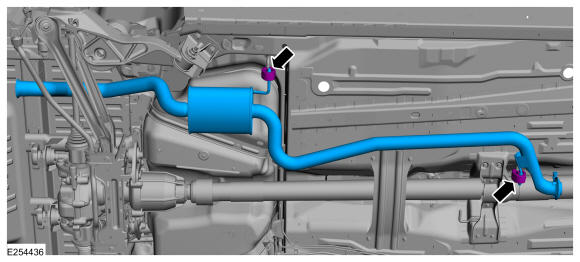

Detach the exhaust isolators. Remove the rear pipe.

Courtesy of FORD MOTOR COMPANY

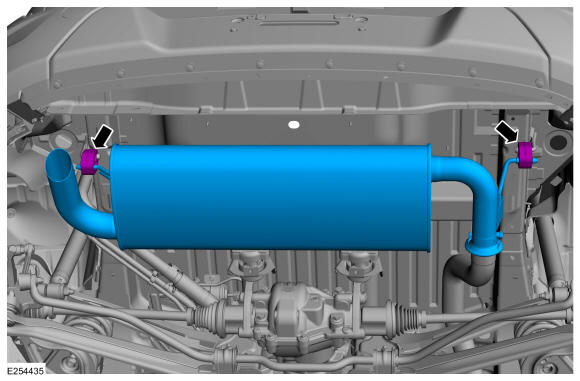

Detach the exhaust isolators. Remove the muffler front pipe.

Courtesy of FORD MOTOR COMPANY
