Muffler and Tailpipe - LHD 4WD: Installation
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
- Clean all exhaust connections before reassembly.

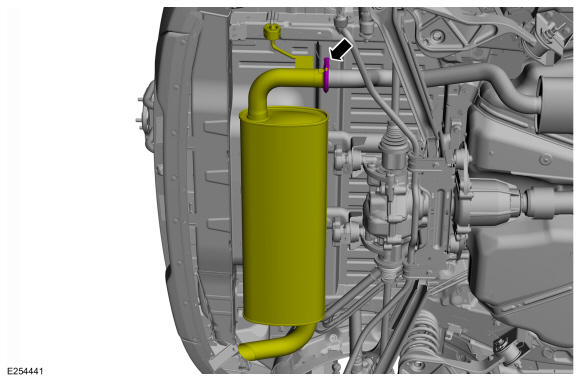

- Install the new muffler and attach the exhaust isolators.
- Install the rear pipe and attach the exhaust isolator.

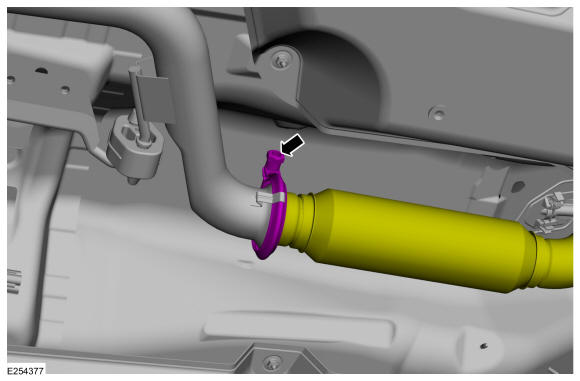

- Install tailpipe flange clamp.
Torque: 17 lb.ft (23 Nm)
- Position the pipe and install the new catalytic converter flange clamp.
Torque: 17 lb.ft (23 Nm)
- Check the exhaust system for leaks.
