Upshift Paddle Switch: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the RH steering wheel multifunction switch. Refer to: Steering Wheel Multifunction Switch .
- Disconnect the upshift paddle switch electrical connector.

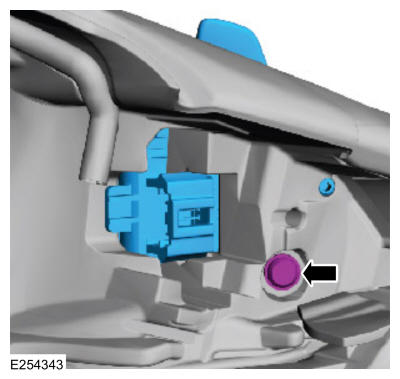

- Remove the bolt and the upshift paddle switch.
