Selector Lever: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the floor console. Refer to: Floor Console .

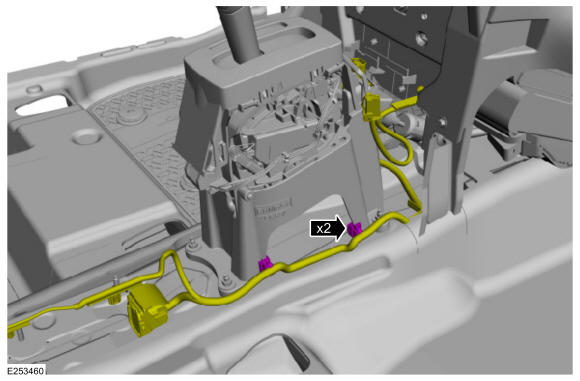

Detach the wiring harness retainers from the selector lever.

Courtesy of FORD MOTOR COMPANY

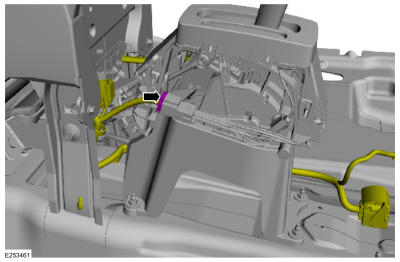

Disconnect the selector lever electrical connector.

Courtesy of FORD MOTOR COMPANY

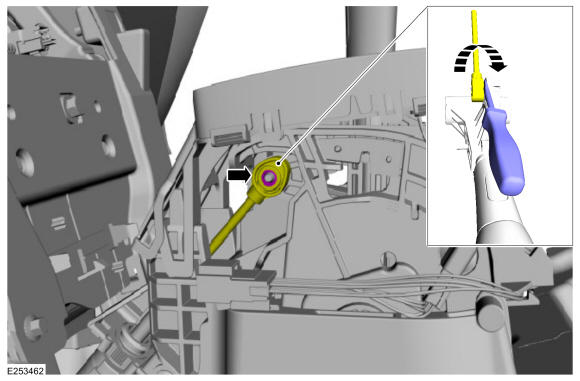

NOTE: Do not pull or pry on the selector lever cable or the selector lever cable end may be damaged. Use a screwdriver and turn the screwdriver as shown to pry the cable end off the post as close to the post as possible.

Using a screwdriver, pry the selector lever cable end from the selector lever mechanism.

Courtesy of FORD MOTOR COMPANY
Remove the selector lever cable retaining clip bolt.
Torque

: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
Disconnect the selector lever cable clip and the selector lever cable from the selector lever.

Courtesy of FORD MOTOR COMPANY

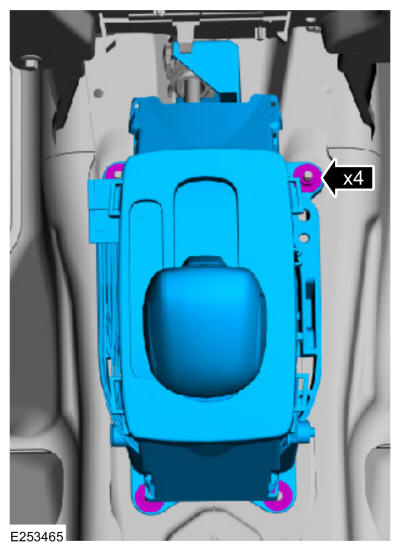

Remove the nuts and the selector lever.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
