Selector Lever Knob: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

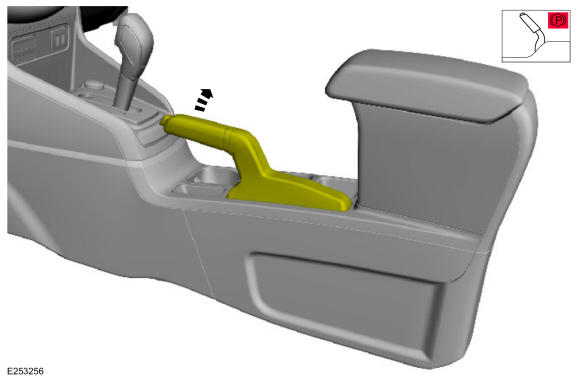

  1. Apply the parking brake.
    GFD327465Courtesy of FORD MOTOR COMPANY

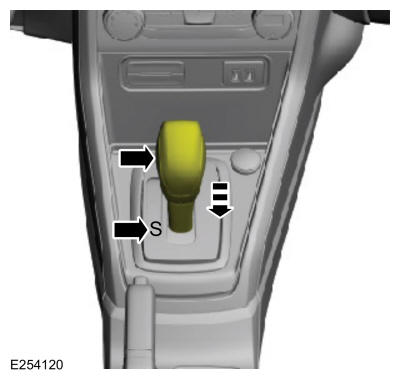

  2. Position the selector lever in S.
    GFD327488Courtesy of FORD MOTOR COMPANY

    Selector lever knobs with a SelectShift® switch

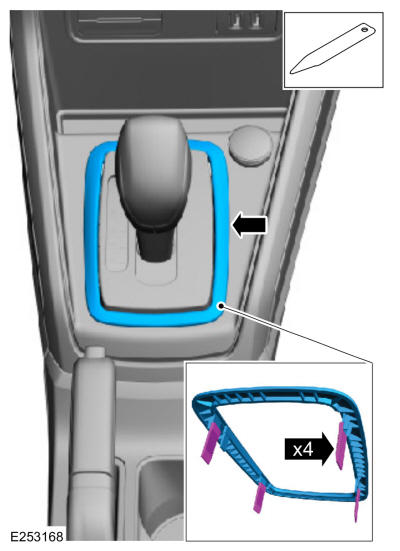

  3. Remove the selector lever bezel trim ring. Use the General Equipment: Interior Trim Remover
    GFD327489Courtesy of FORD MOTOR COMPANY

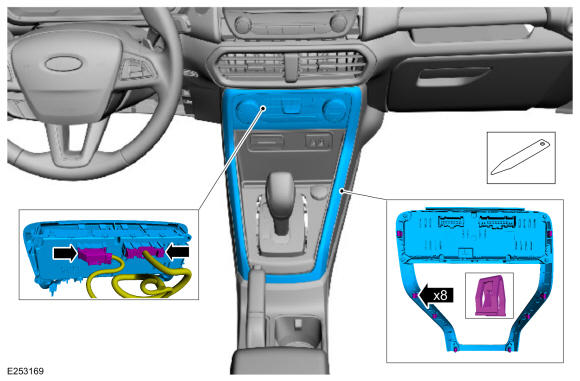

  4. Detach the trim ring and the HVAC control module, disconnect the HVAC control module electrical connectors and remove the trim ring and the HVAC control module as an assembly. Use the General Equipment: Interior Trim Remover
    GFD327490Courtesy of FORD MOTOR COMPANY

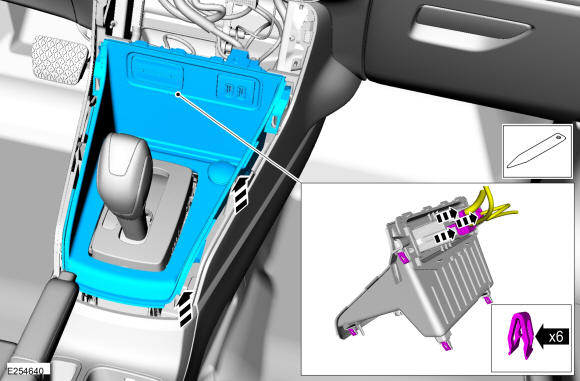

  5. Remove the selector lever finish panel and disconnect the electrical connectors. Use the General Equipment: Interior Trim Remover
    GFD327491Courtesy of FORD MOTOR COMPANY

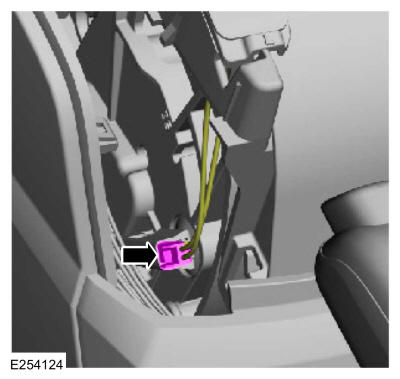

  6. Disconnect the LED strip electrical connector.
    GFD327492Courtesy of FORD MOTOR COMPANY

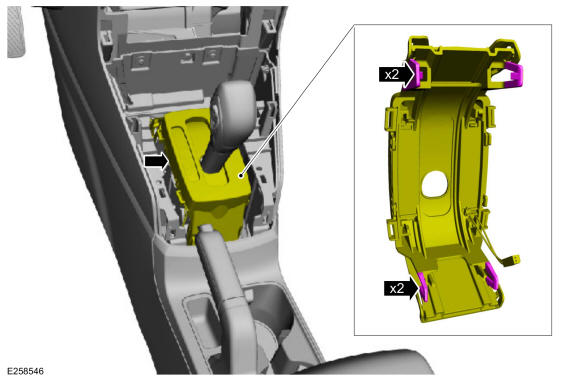

  7. Unsnap and position aside the selector lever bezel.
    GFD327493Courtesy of FORD MOTOR COMPANY

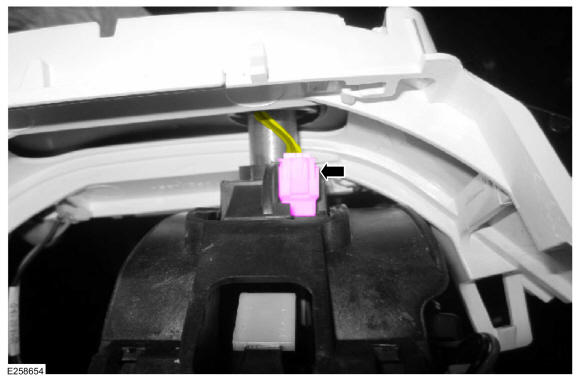

  8. Disconnect the SelectShift® switch electrical connector.
    GFD327494Courtesy of FORD MOTOR COMPANY

    All vehicles

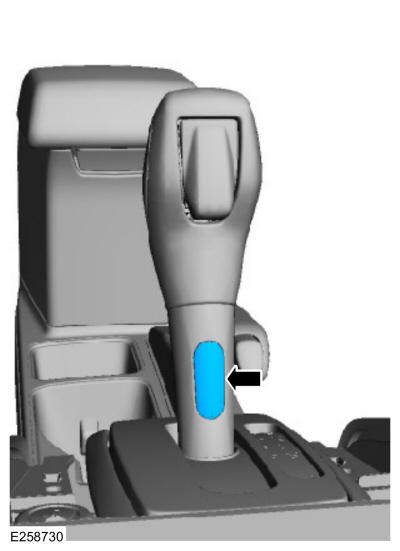

  9. Remove the selector lever knob screw cover.
    GFD327495Courtesy of FORD MOTOR COMPANY

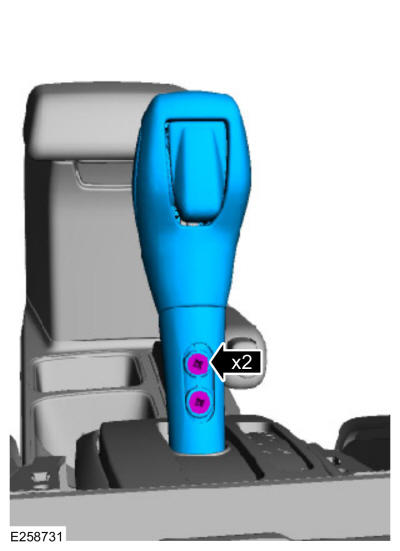

  10. Remove the screws and the selector lever knob.
GFD327496Courtesy of FORD MOTOR COMPANY
