Selector Lever Cable - 6-Speed Automatic Transmission - 6F35: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the air cleaner. Refer to: Air Cleaner .

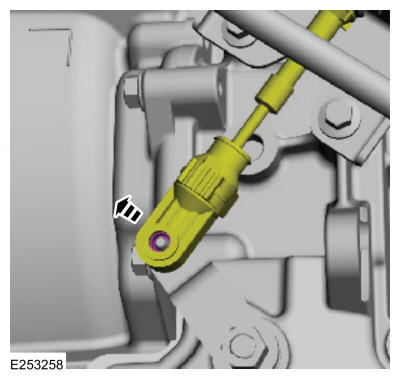

Disconnect the selector lever cable from the transmission manual lever.

Courtesy of FORD MOTOR COMPANY
Remove the selector lever cable clip bolt.

Courtesy of FORD MOTOR COMPANY

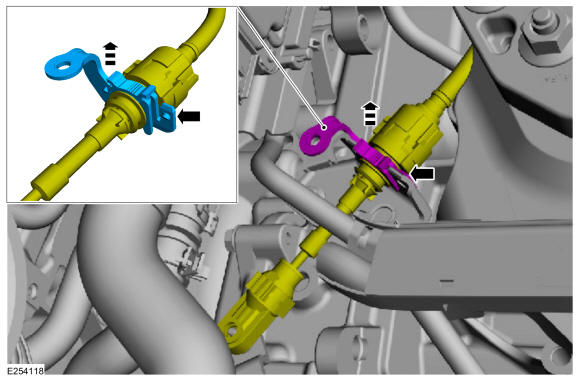

Disconnect the selector lever cable from the transmission. Remove the clip from the selector lever cable.

Courtesy of FORD MOTOR COMPANY

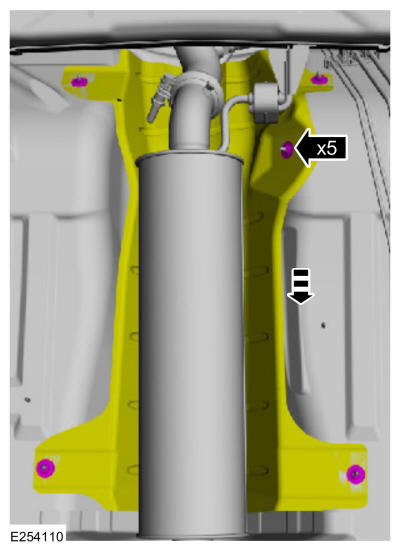

Remove the nuts and position the heat shield aside.

Courtesy of FORD MOTOR COMPANY
Remove the grommet nuts.

Courtesy of FORD MOTOR COMPANY
Remove the floor console. Refer to: Floor Console .
NOTE: Do not pull or pry on the selector lever cable or the selector lever cable end may be damaged. Use a screwdriver and turn the screwdriver as shown to pry the cable end off the post as close to the post as possible.

Using a screwdriver, pry the selector lever cable end from the selector lever mechanism.

Courtesy of FORD MOTOR COMPANY
Remove the selector lever cable retaining clip bolt.

Courtesy of FORD MOTOR COMPANY
Disconnect the selector lever cable clip and the selector lever cable from the selector lever.

Courtesy of FORD MOTOR COMPANY

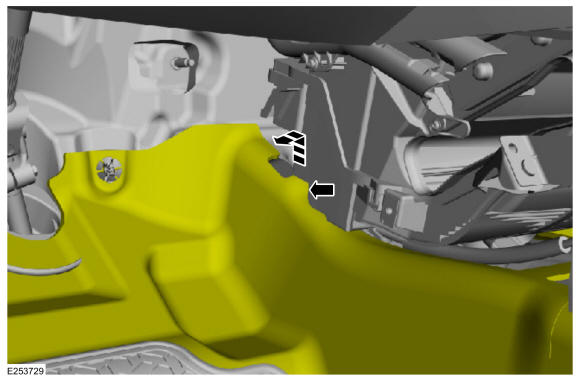

Position the carpet aside.

Courtesy of FORD MOTOR COMPANY

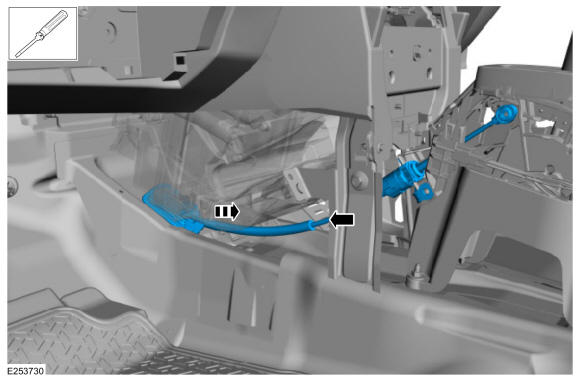

NOTE: If necessary, use a screwdriver to pry the grommet out of the floor pan past the HVAC housing.

Remove the selector lever cable.

Courtesy of FORD MOTOR COMPANY
