Selector Lever Cable - 6-Speed Automatic Transmission - 6F35: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If necessary.

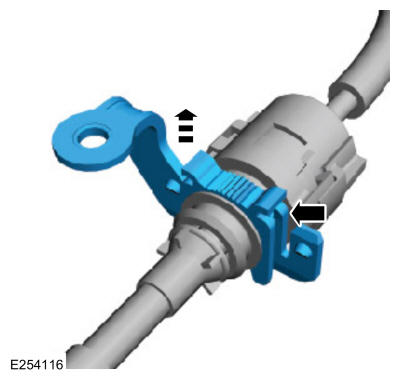

If necessary, remove the selector lever cable clip from the transmission end of the cable.

Courtesy of FORD MOTOR COMPANY

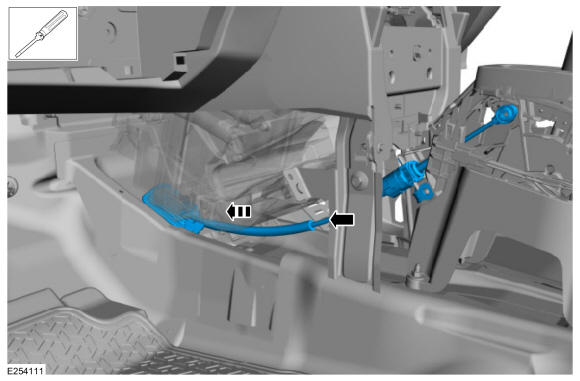

NOTE: If necessary, use a screwdriver to pry the grommet past the HVAC housing into the floor pan.

Install the selector lever cable.

Courtesy of FORD MOTOR COMPANY

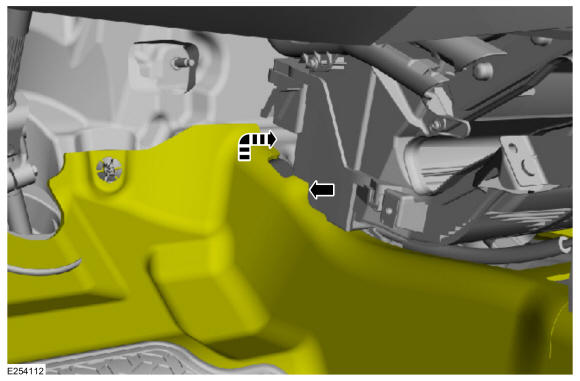

Position the carpet.

Courtesy of FORD MOTOR COMPANY

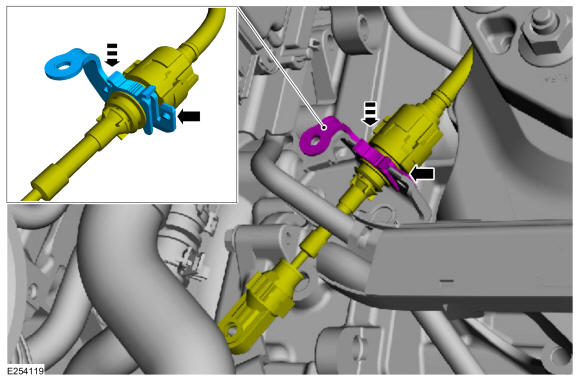

Connect the selector lever cable clip and the selector lever cable to the selector lever.

Courtesy of FORD MOTOR COMPANY

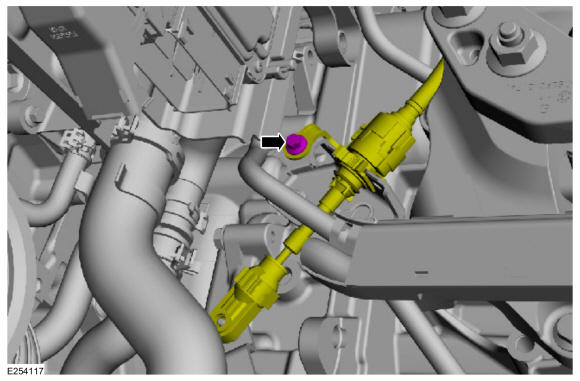

Install the selector lever cable retaining clip bolt.
Torque

: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

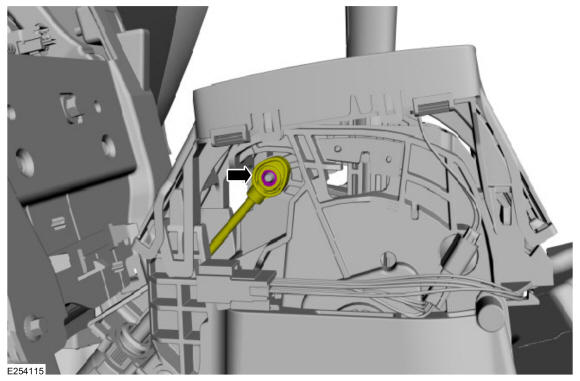

Connect the selector lever cable end to the selector lever mechanism.

Courtesy of FORD MOTOR COMPANY
Install the floor console. Refer to: Floor Console .

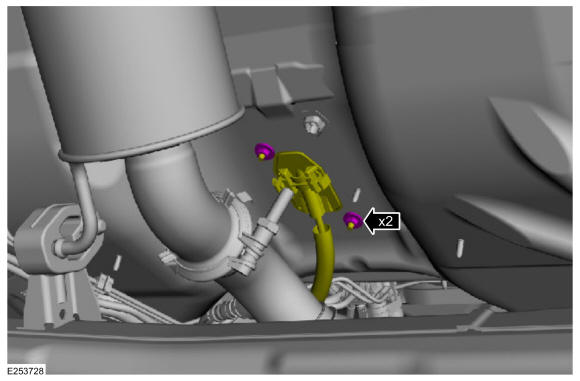

Install the grommet nuts.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

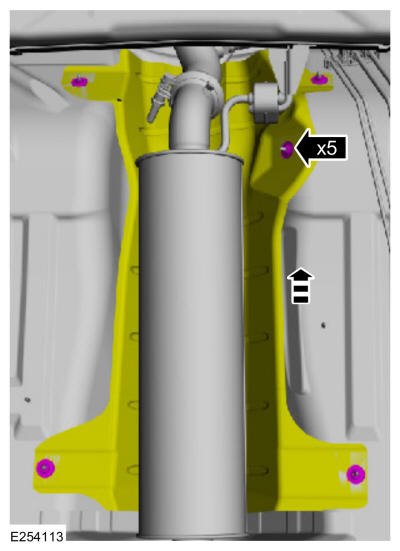

Position the heat shield and install the nuts.

Courtesy of FORD MOTOR COMPANY
Install the clip on the selector lever cable. Connect the selector lever cable to the transmission.

Courtesy of FORD MOTOR COMPANY
Install the selector lever cable clip bolt.
Torque

: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
Position the selector lever in D.

Courtesy of FORD MOTOR COMPANY
Position the transmission manual lever in D.
1. Rotate the transmission manual lever counterclockwise until it stops.
2. Rotate the transmission manual lever 3 detents into D.
Courtesy of FORD MOTOR COMPANY
Unlock the selector lever cable adjuster.

Courtesy of FORD MOTOR COMPANY

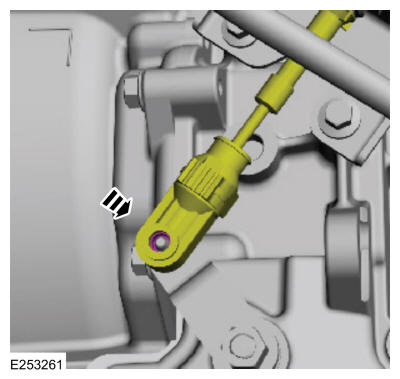

Connect the selector lever cable to the transmission manual lever.

Courtesy of FORD MOTOR COMPANY

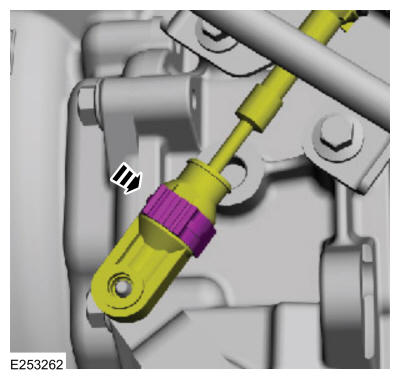

Lock the selector lever cable adjuster lock.

Courtesy of FORD MOTOR COMPANY
Install the air cleaner. Refer to: Air Cleaner .
Verify that the engine starts in P and N and that the reverse lamps illuminate in P.
