Selector Lever Bezel: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
All vehicles
- Remove the selector lever knob. Refer to: Selector Lever Knob .
Selector lever knobs without a SelectShift® switch

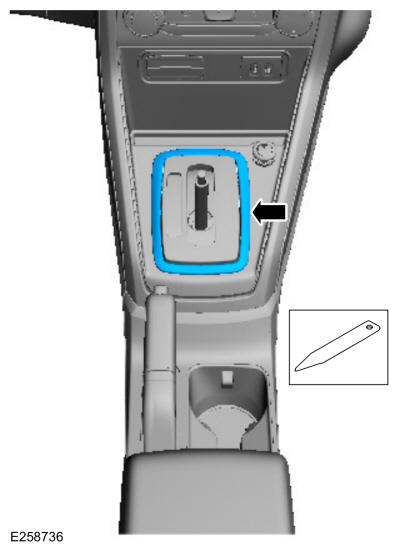

- Remove the selector lever bezel trim ring. Use the General Equipment: Interior Trim Remover

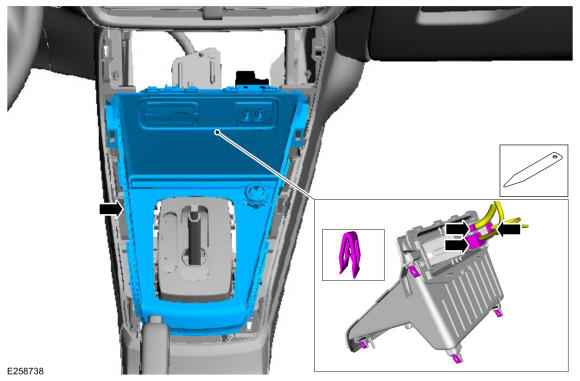

- Detach the trim ring and the HVAC control module, disconnect the HVAC control module electrical connectors and remove the trim ring and the HVAC control module as an assembly. Use the General Equipment: Interior Trim Remover

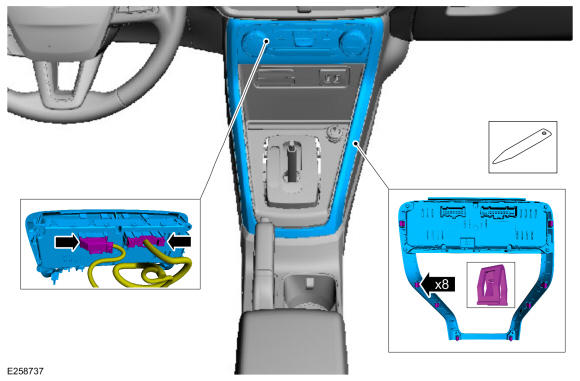

- Remove the selector lever finish panel and disconnect the electrical connectors. Use the General Equipment: Interior Trim Remover
All vehicles

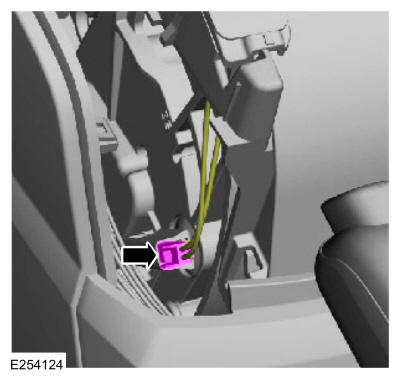

- Disconnect the LED strip electrical connector.

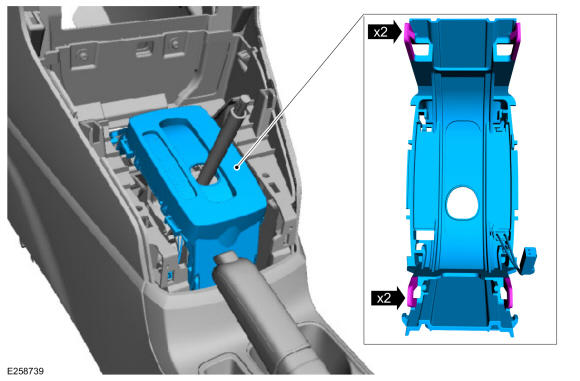

- Remove the selector lever bezel.
